Generation 4
MD45
Inovance Automotive Gen 4 X-in-1 inverter, suitable for new energy light trucks.
Product Features
Broad Compatibility
![]()
Compatible with SiC and functional safety.
High Safety
![]()
Active Short Circuit (ASC) function enhances vehicle driving safety.
Customizable Development
![]()
Accommodates customer-driven software development requirements.
Enhanced Adaptability
![]()
Optimized for single-pack and standard-pack batteries.
Global Readiness
![]()
Cyber security included as standard, compliant with export regulations.

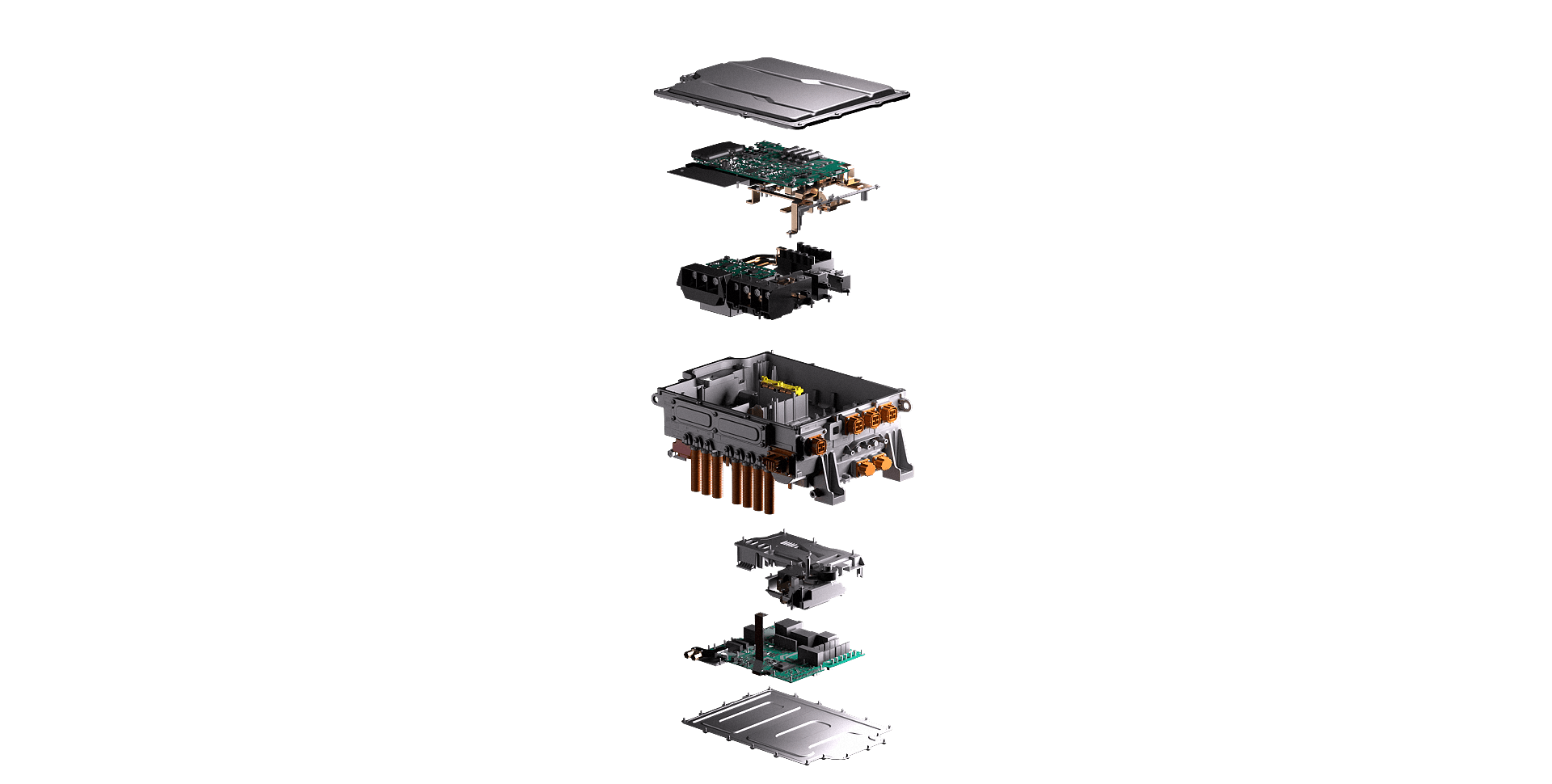

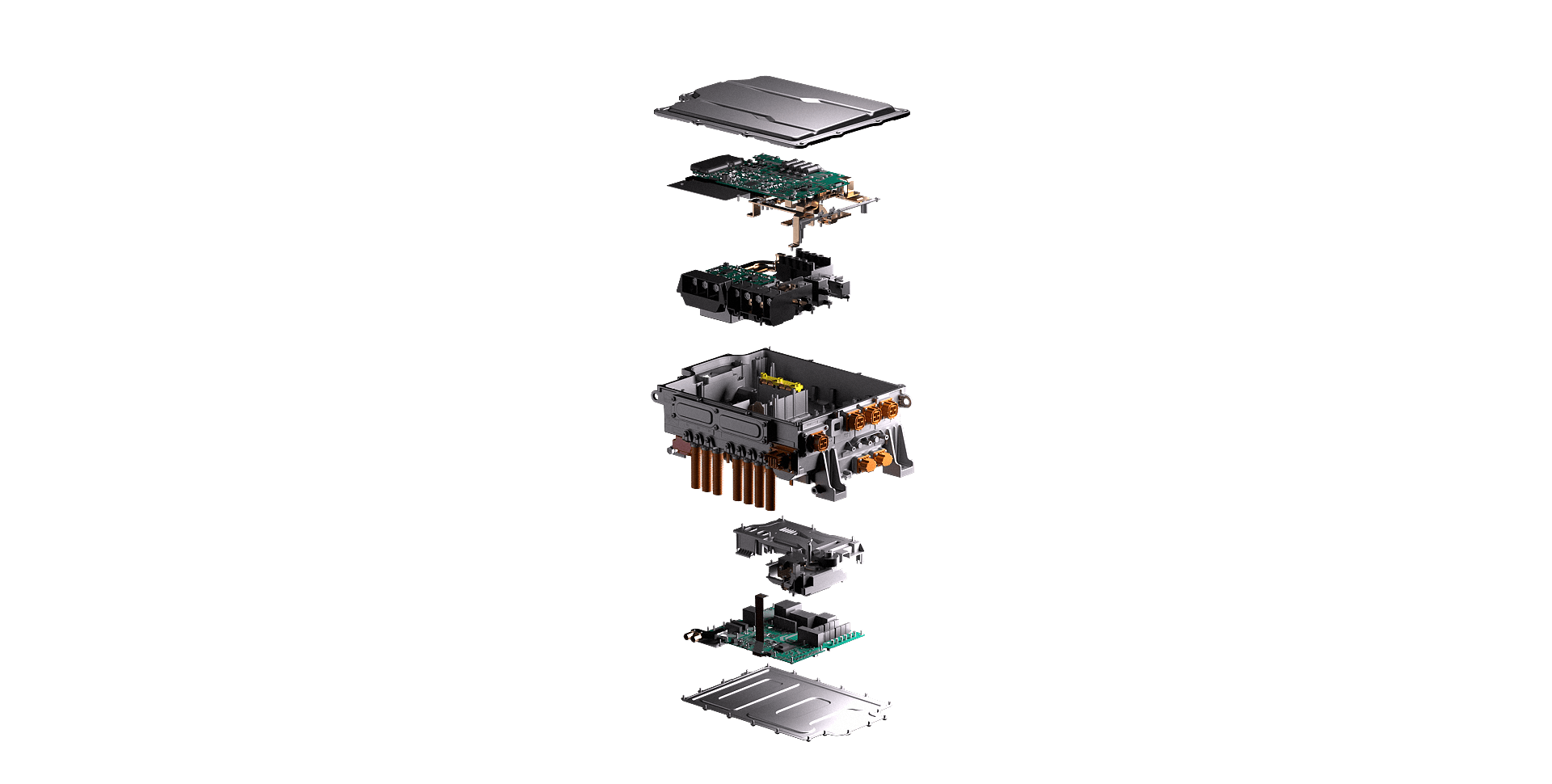

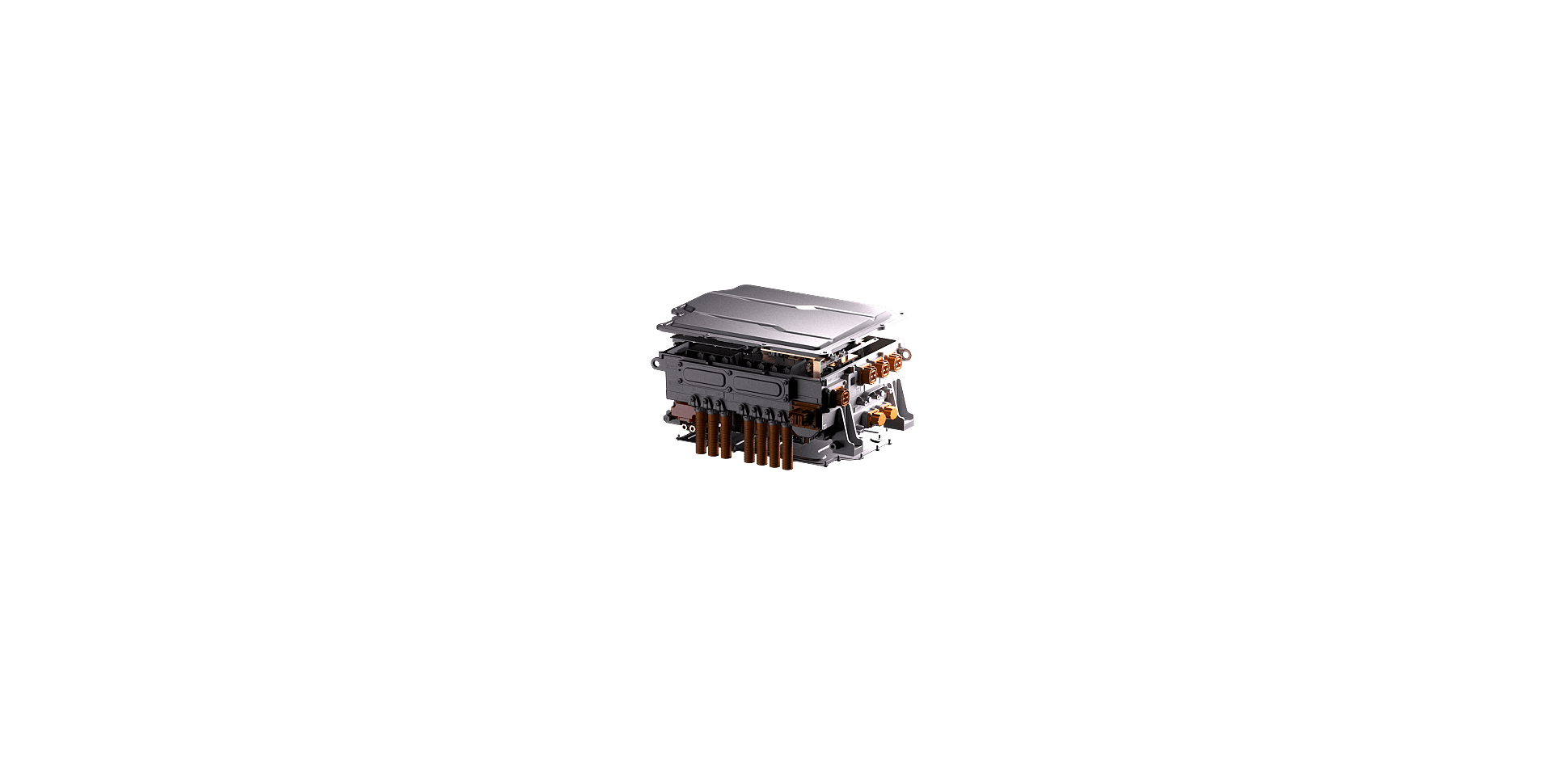

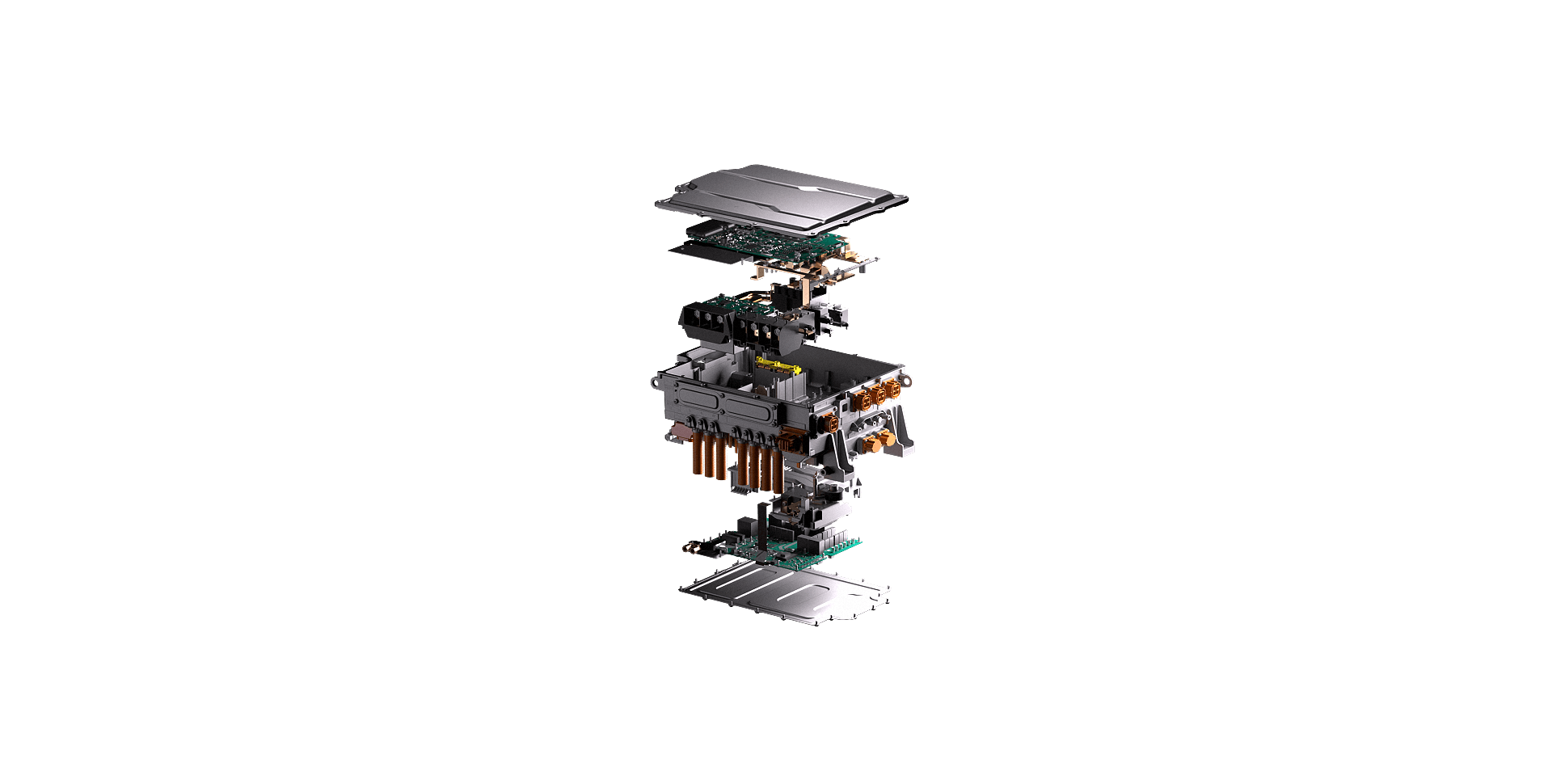

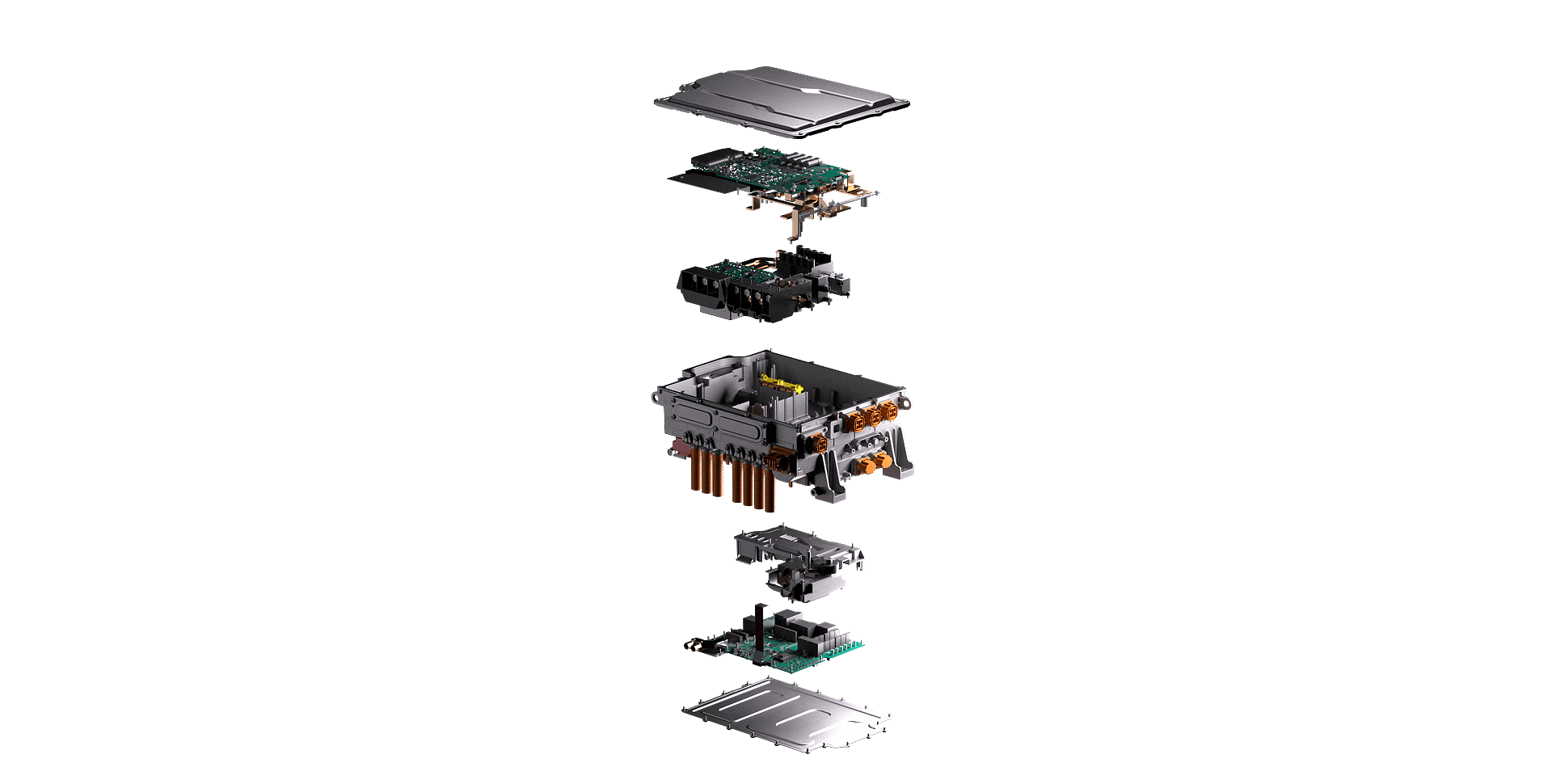

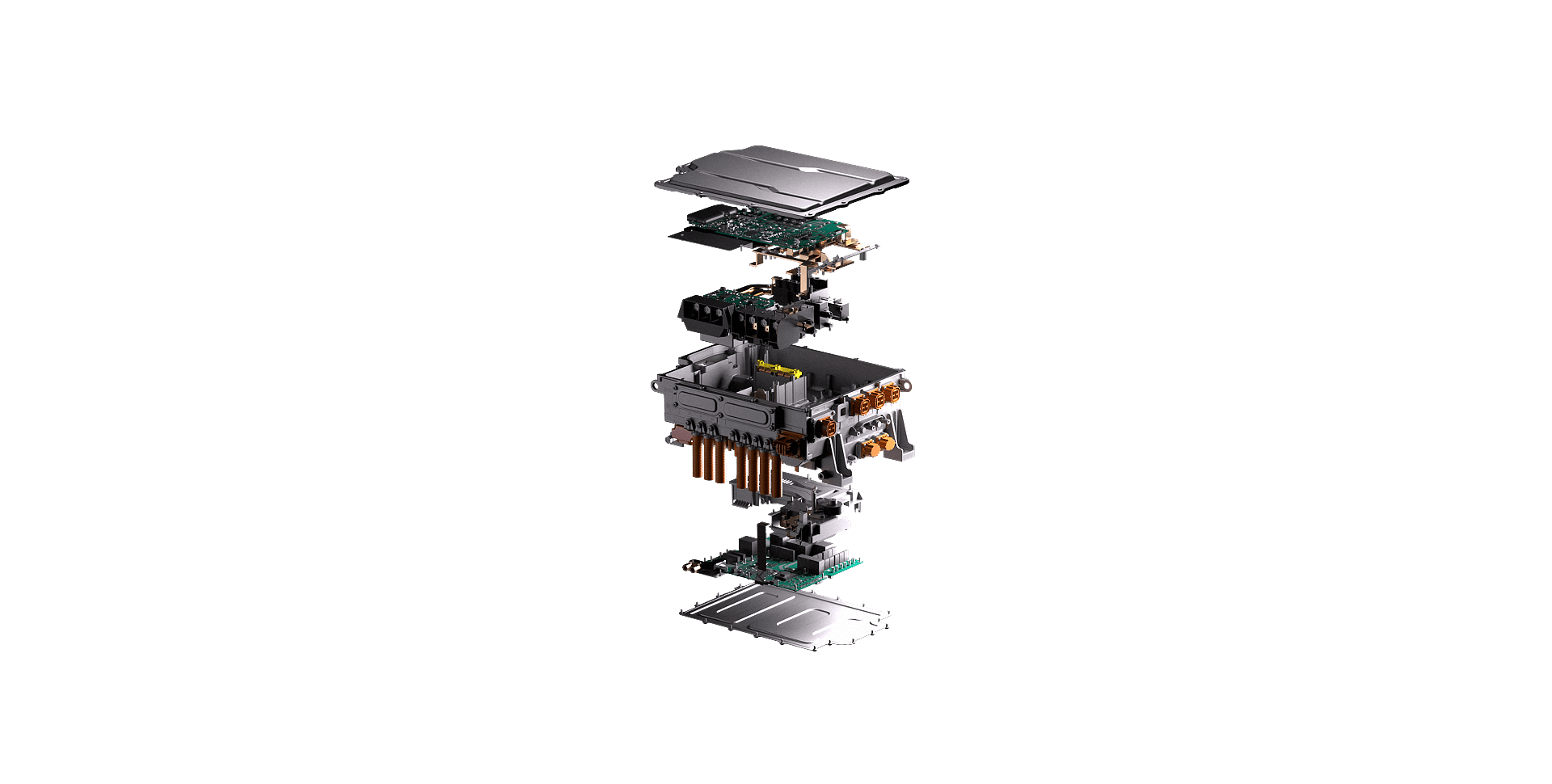

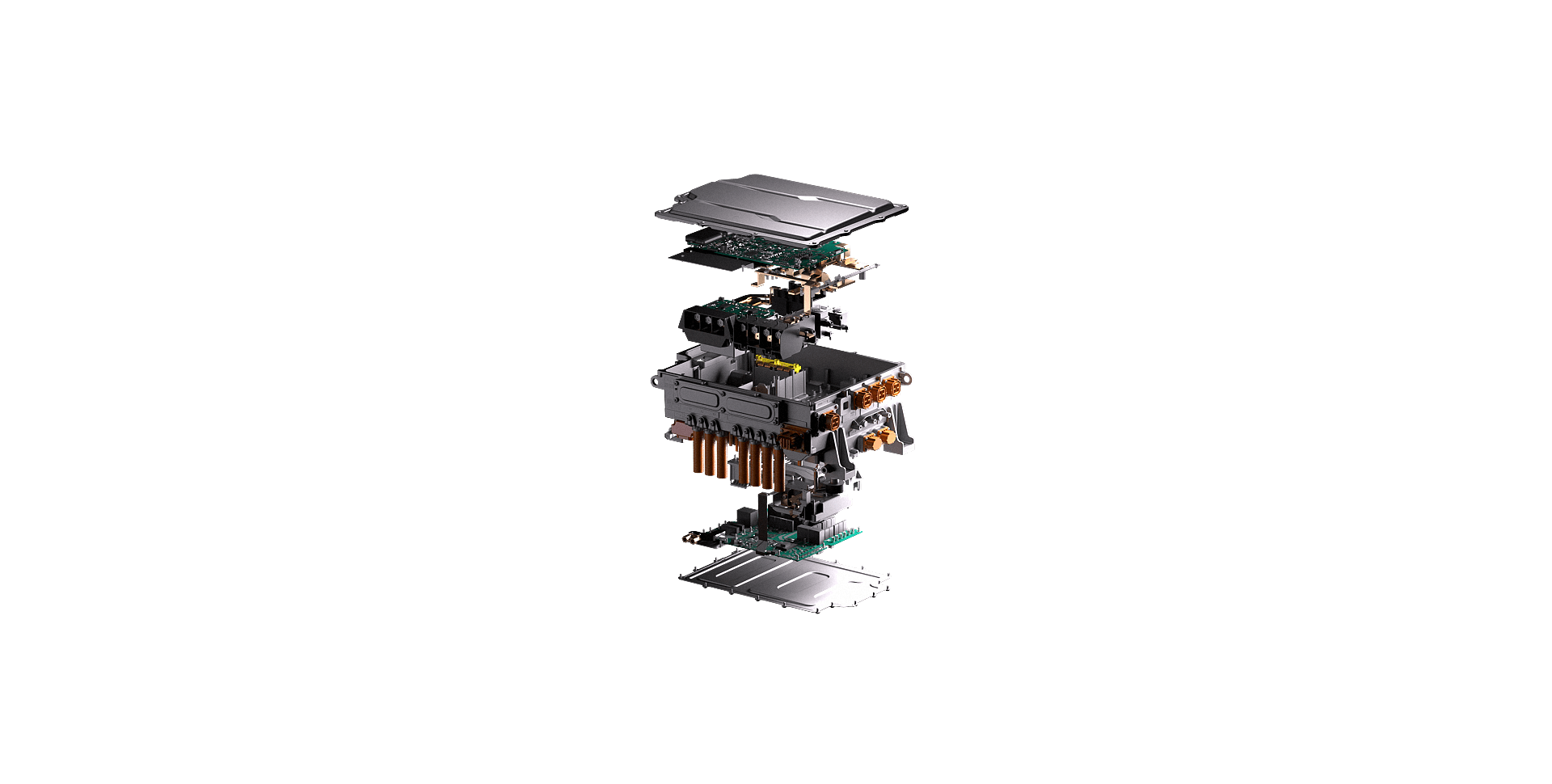

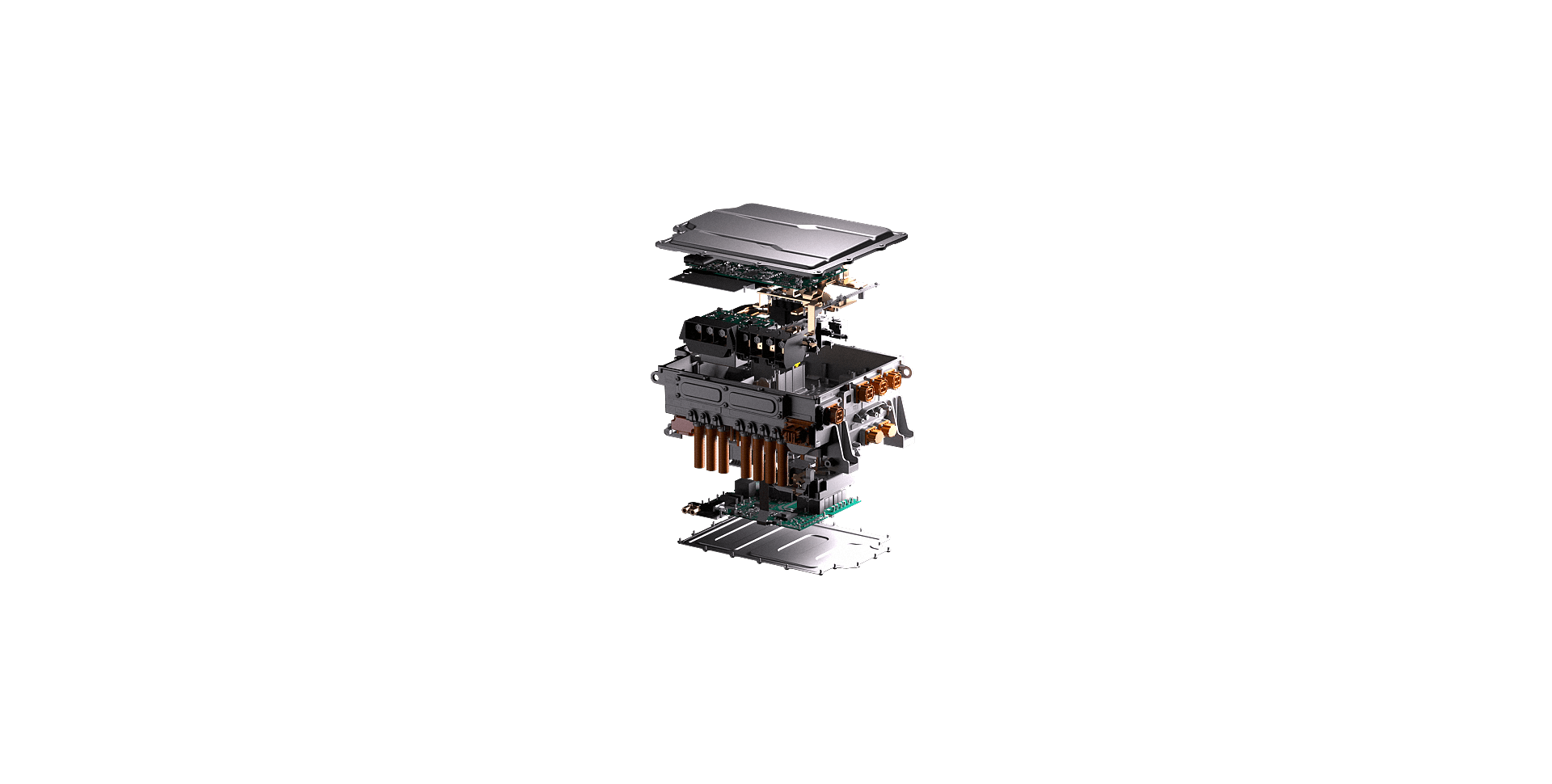

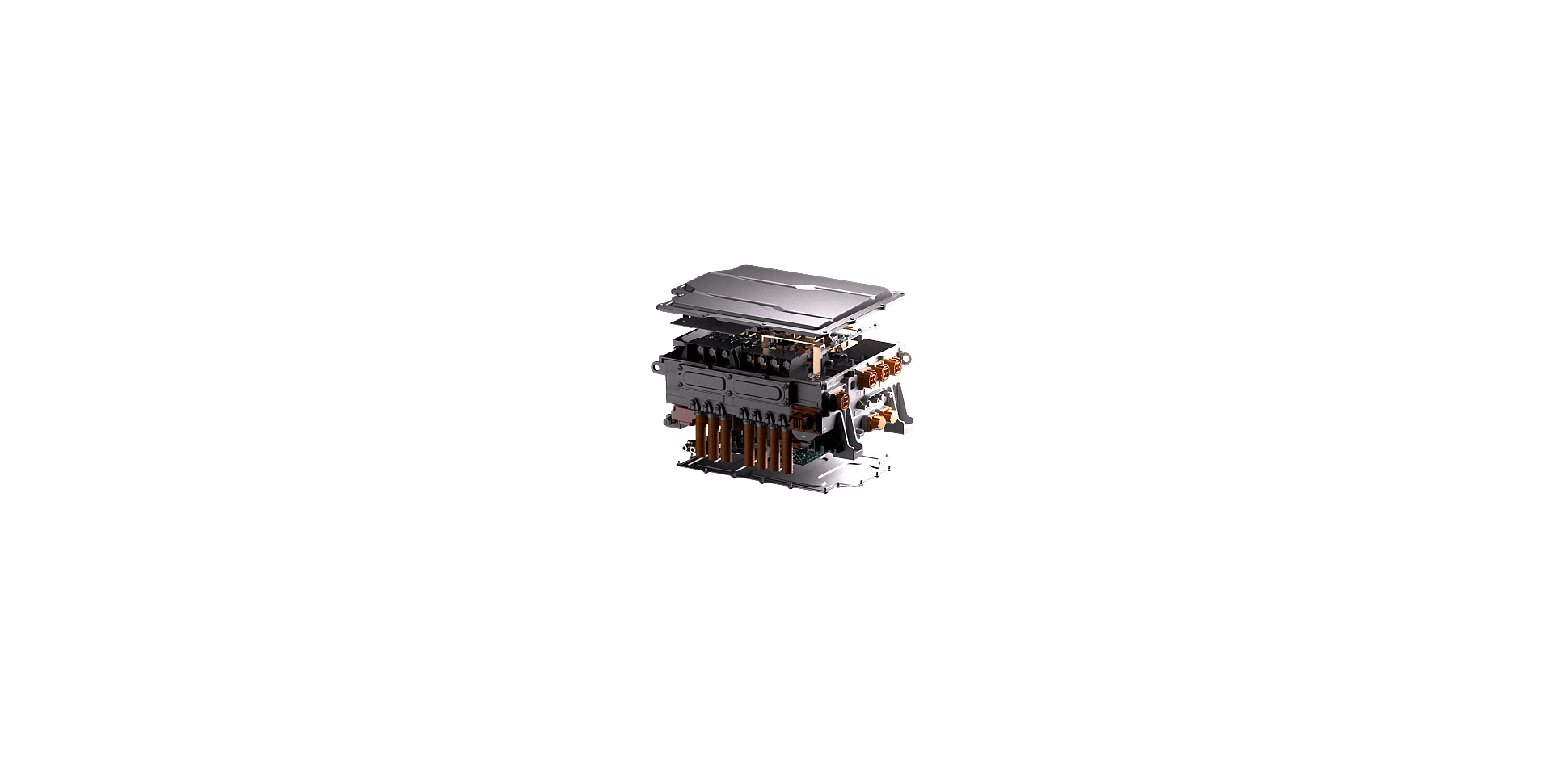

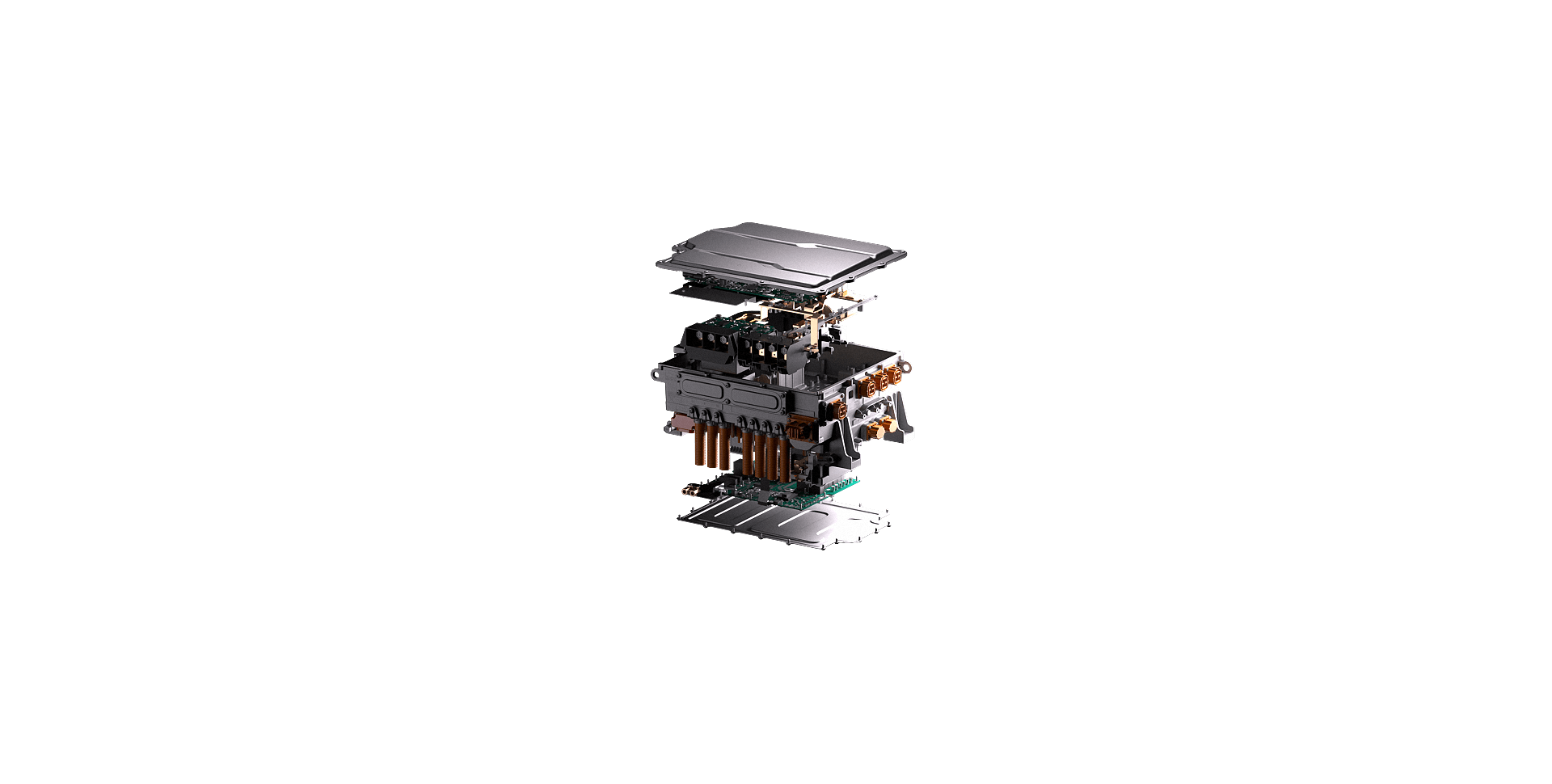

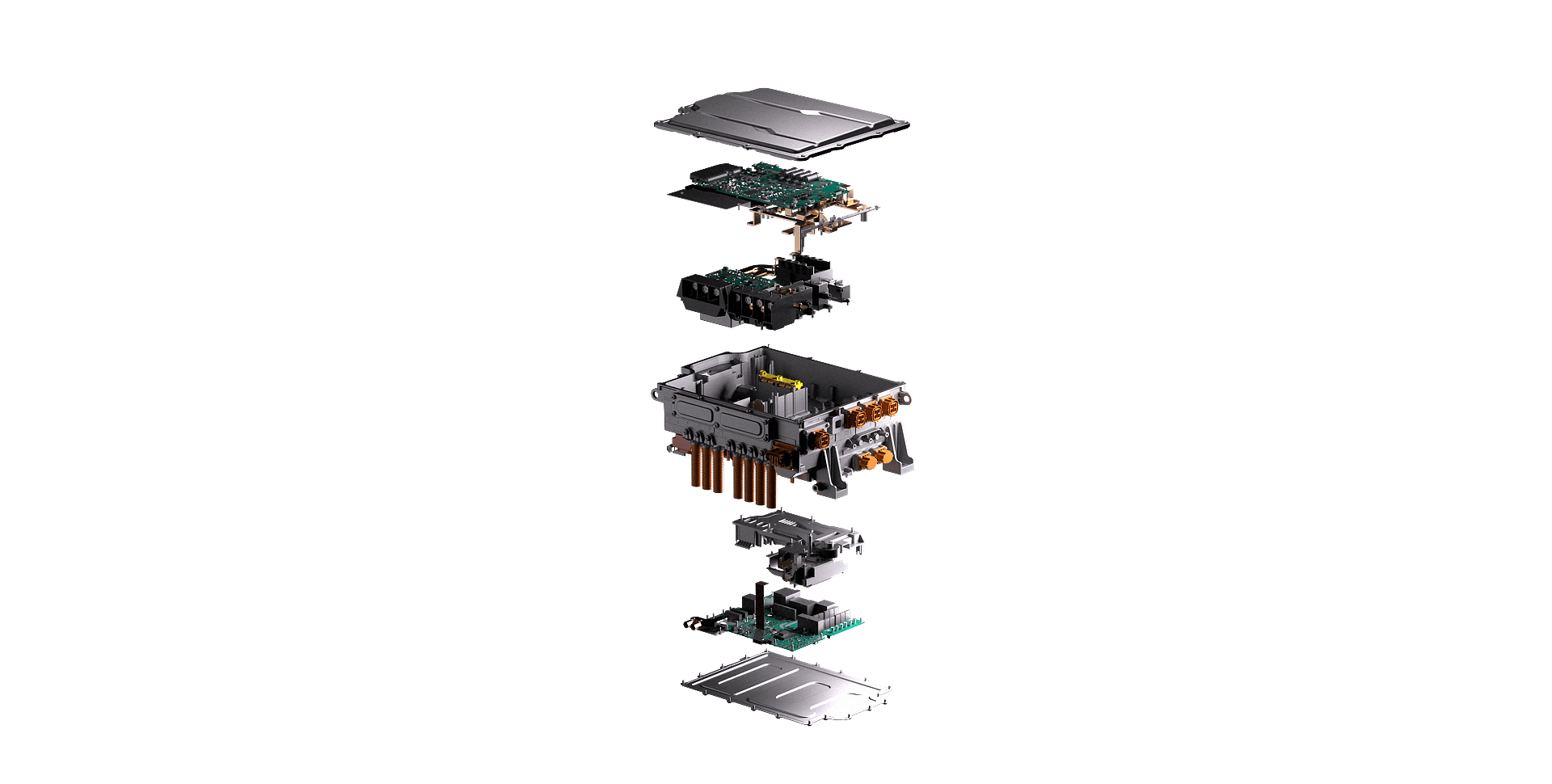

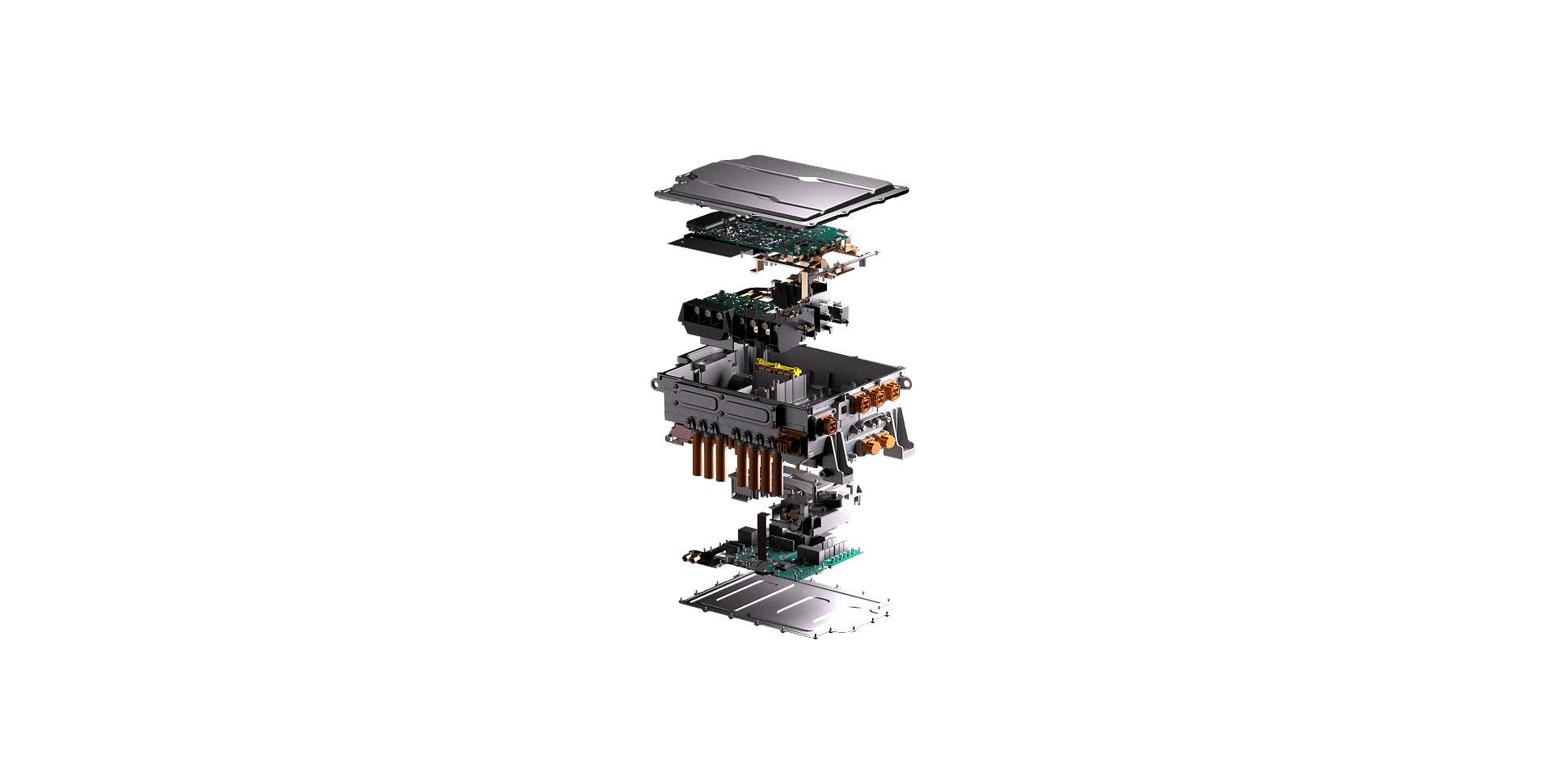

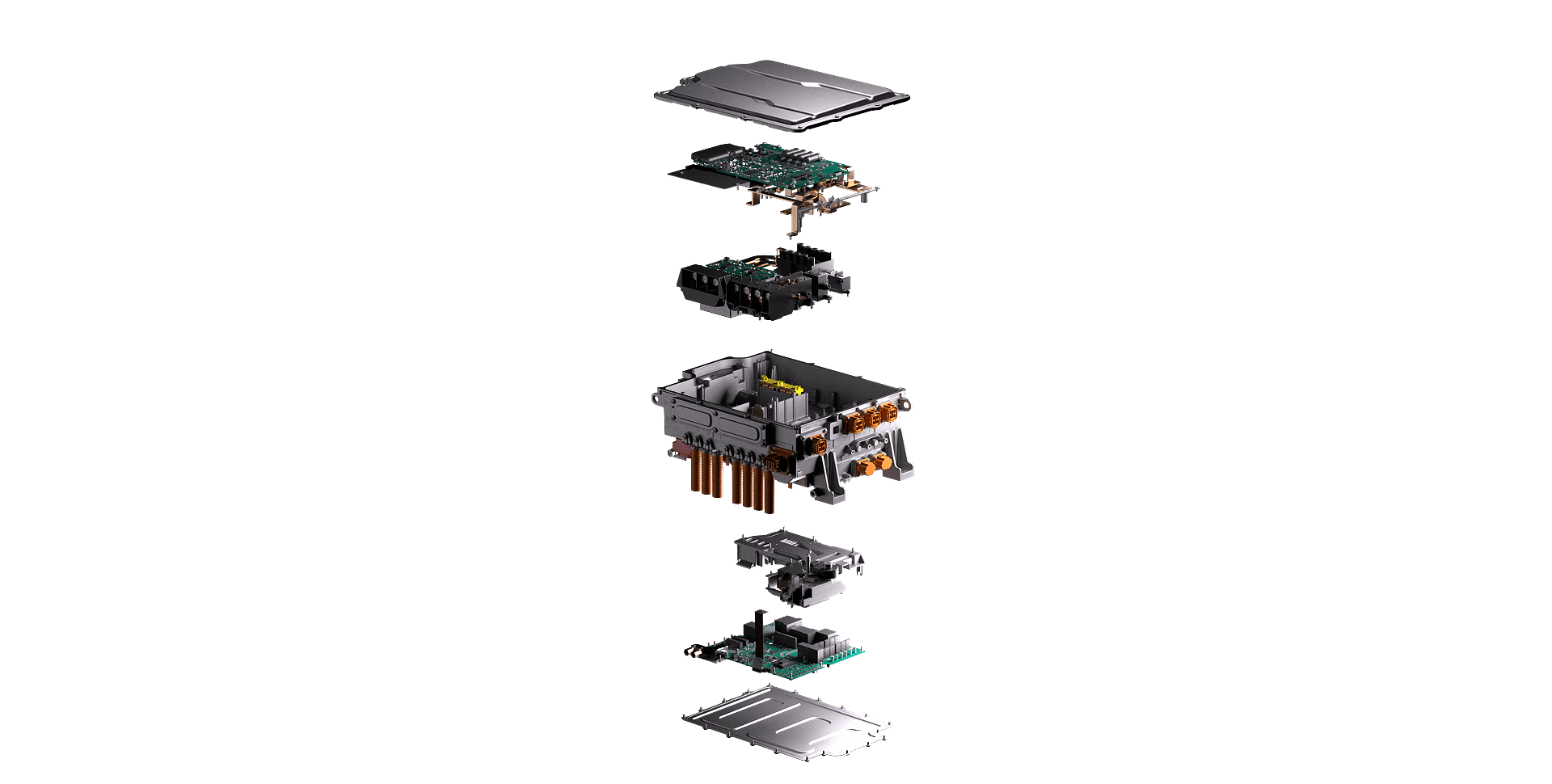

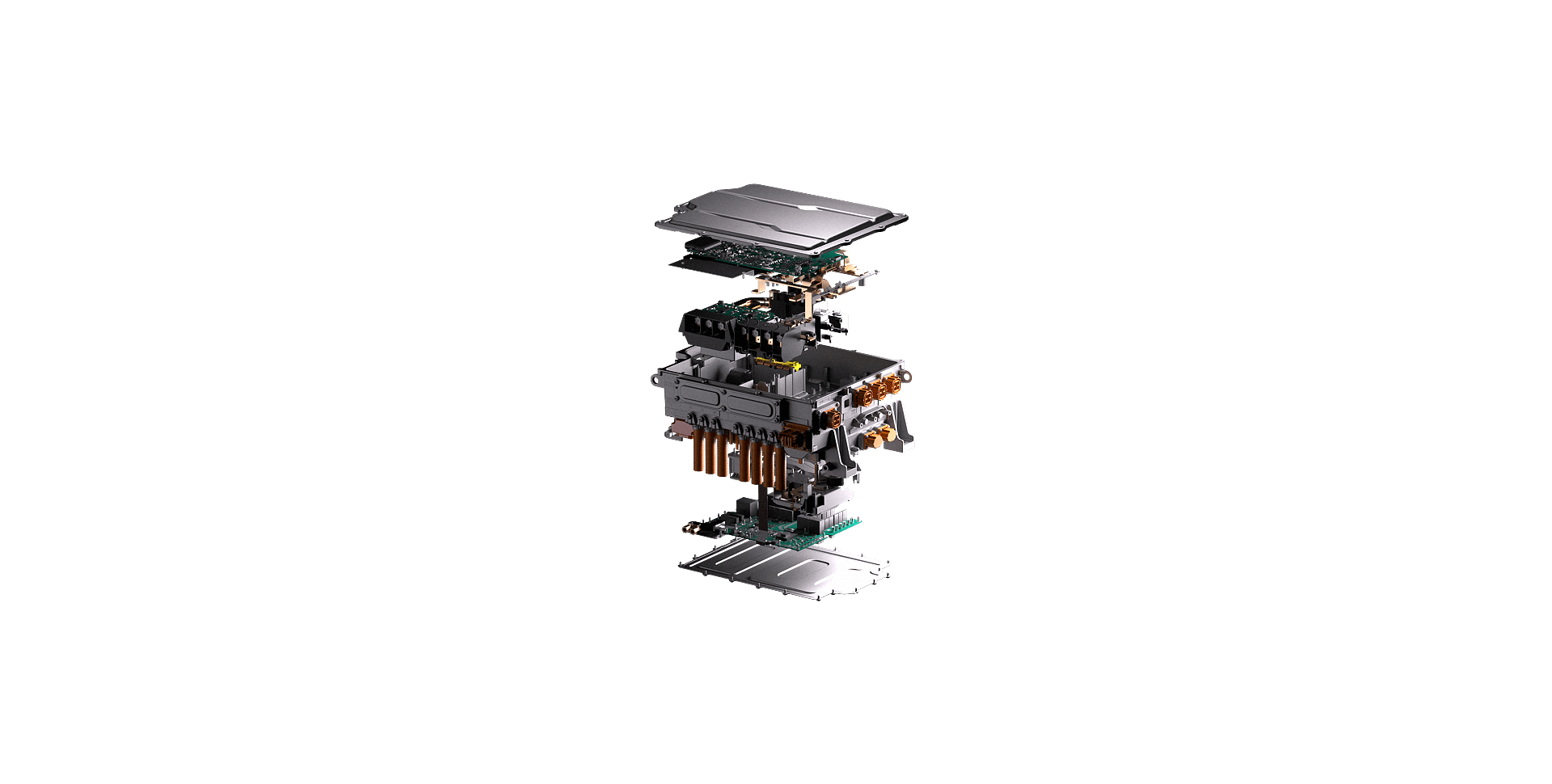

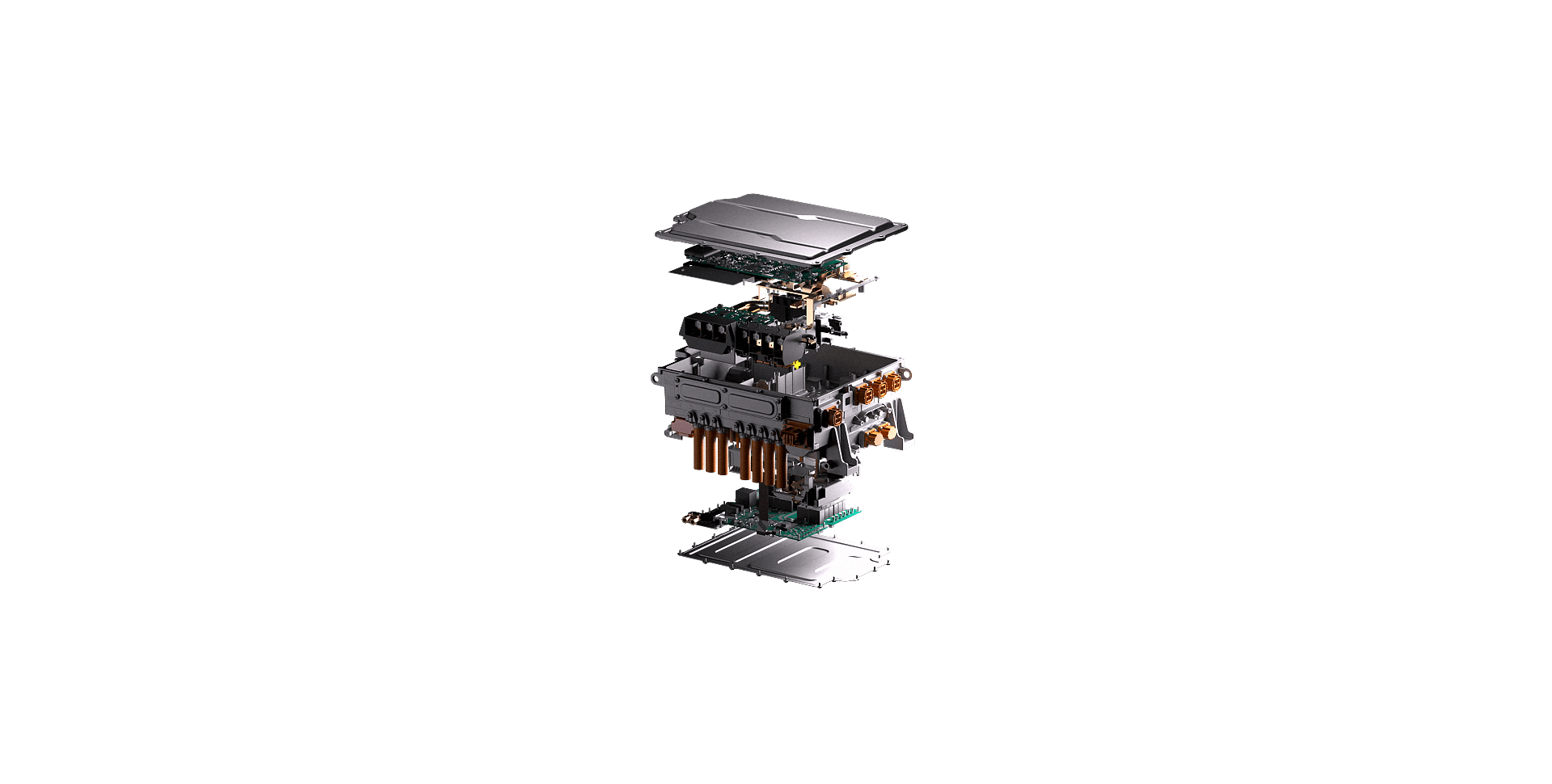

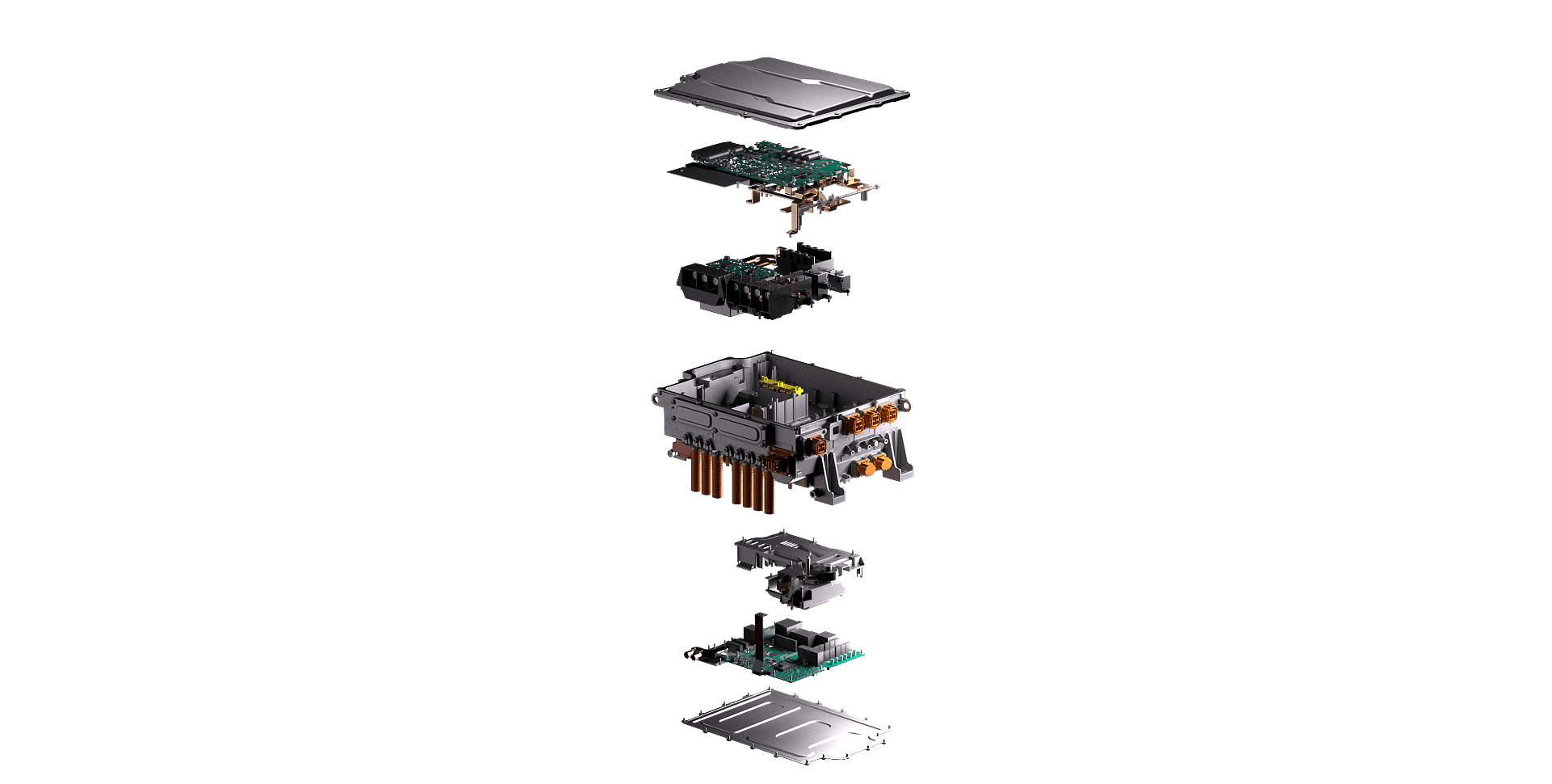

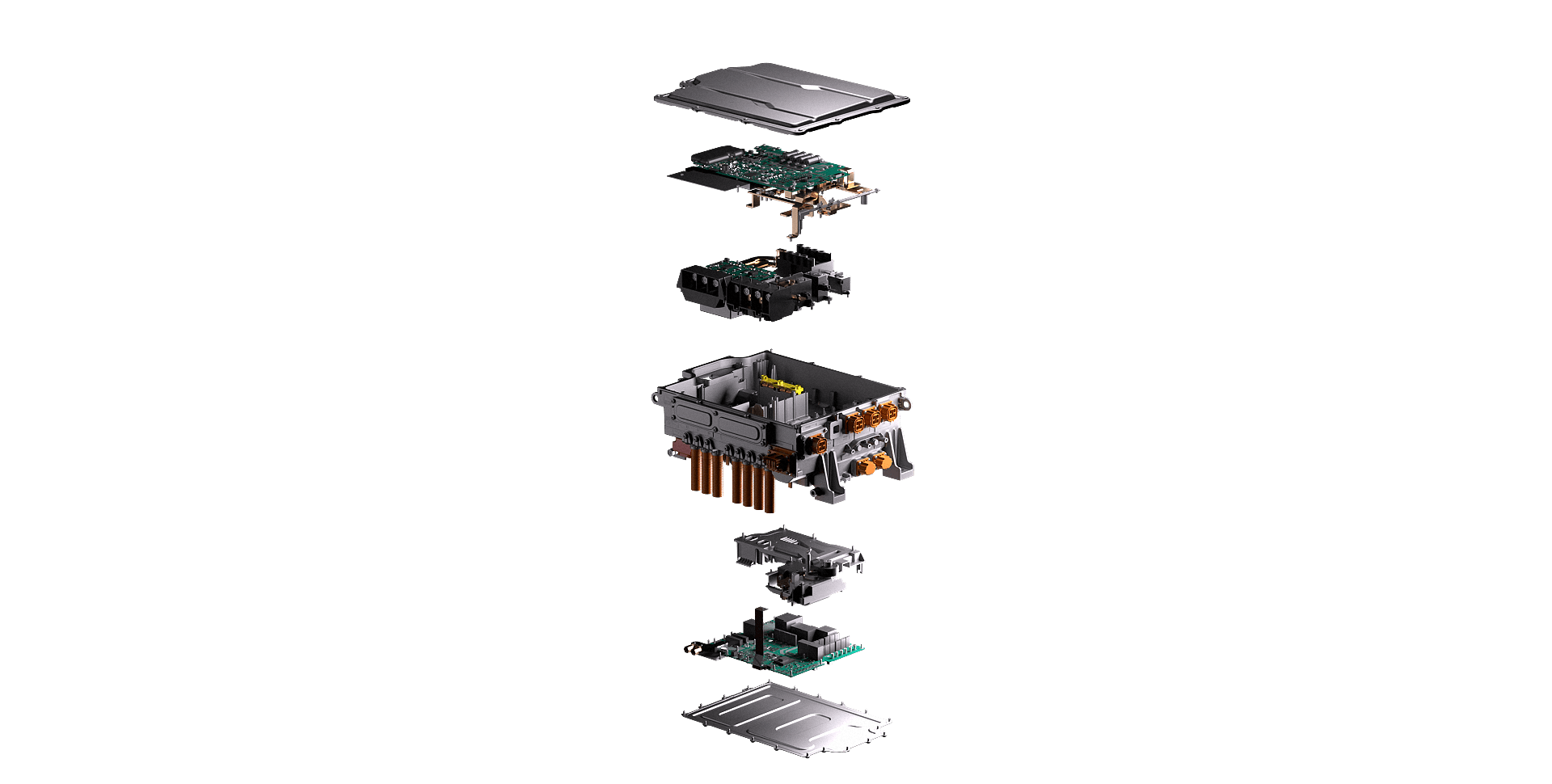

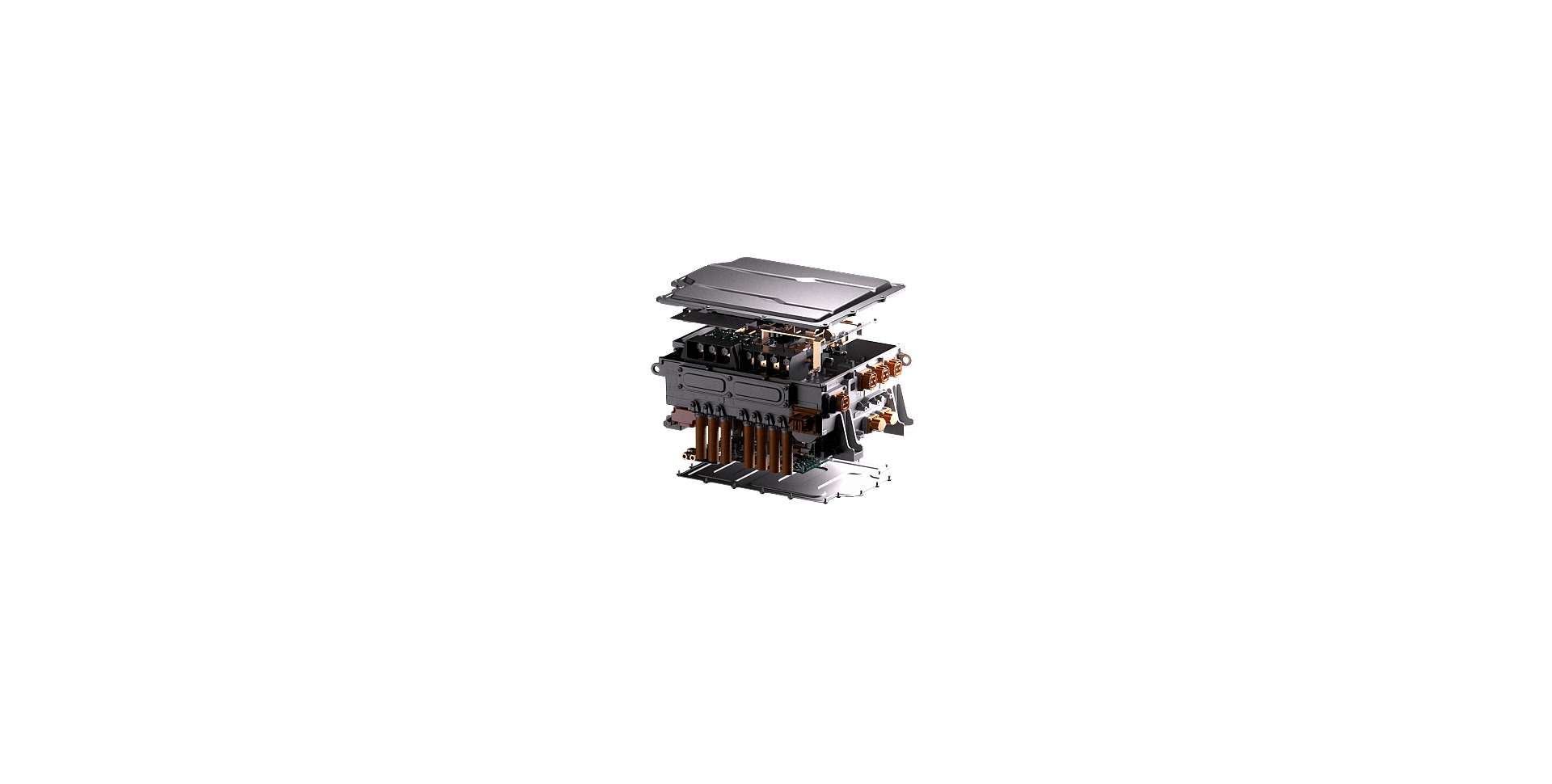

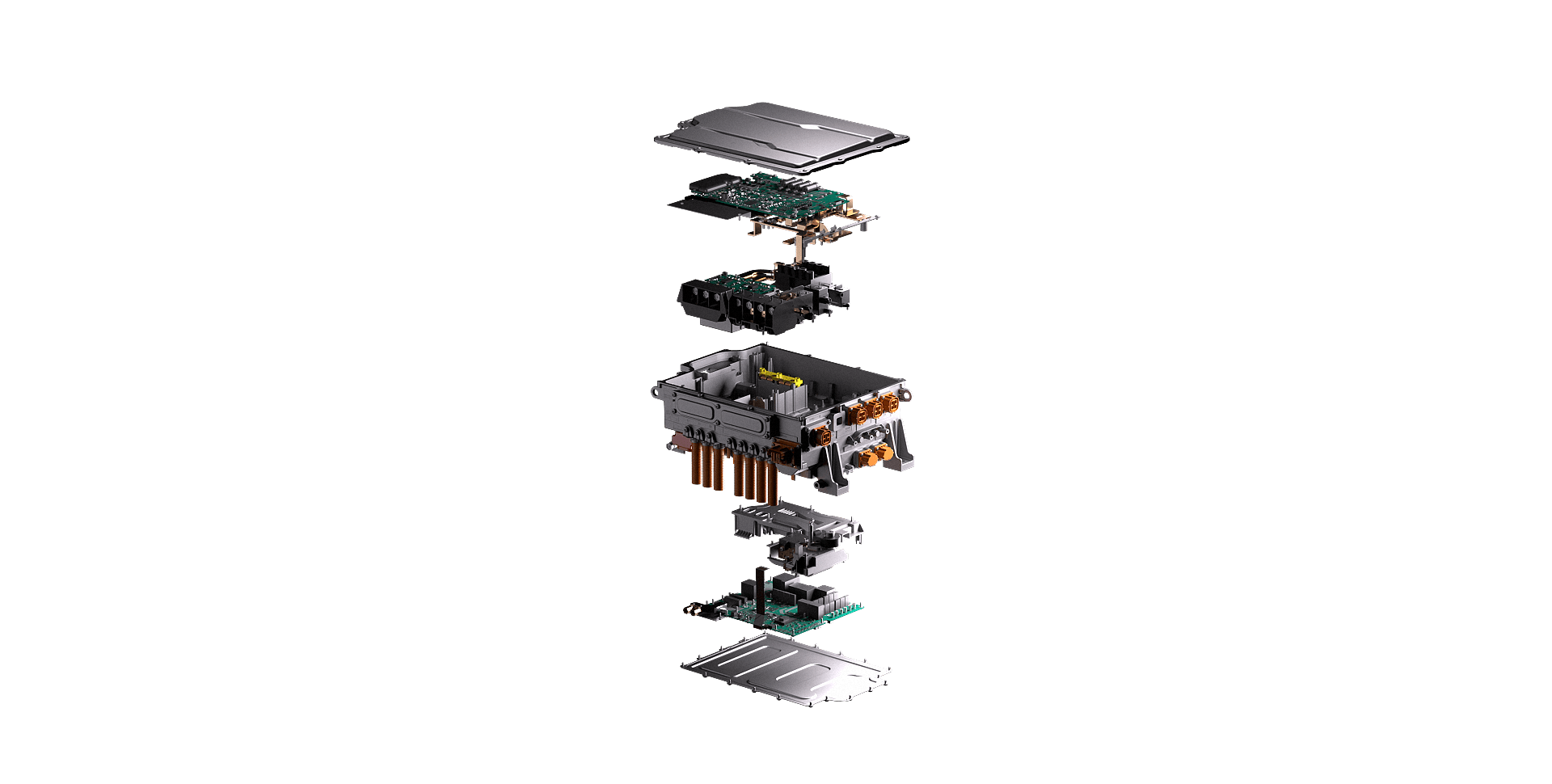

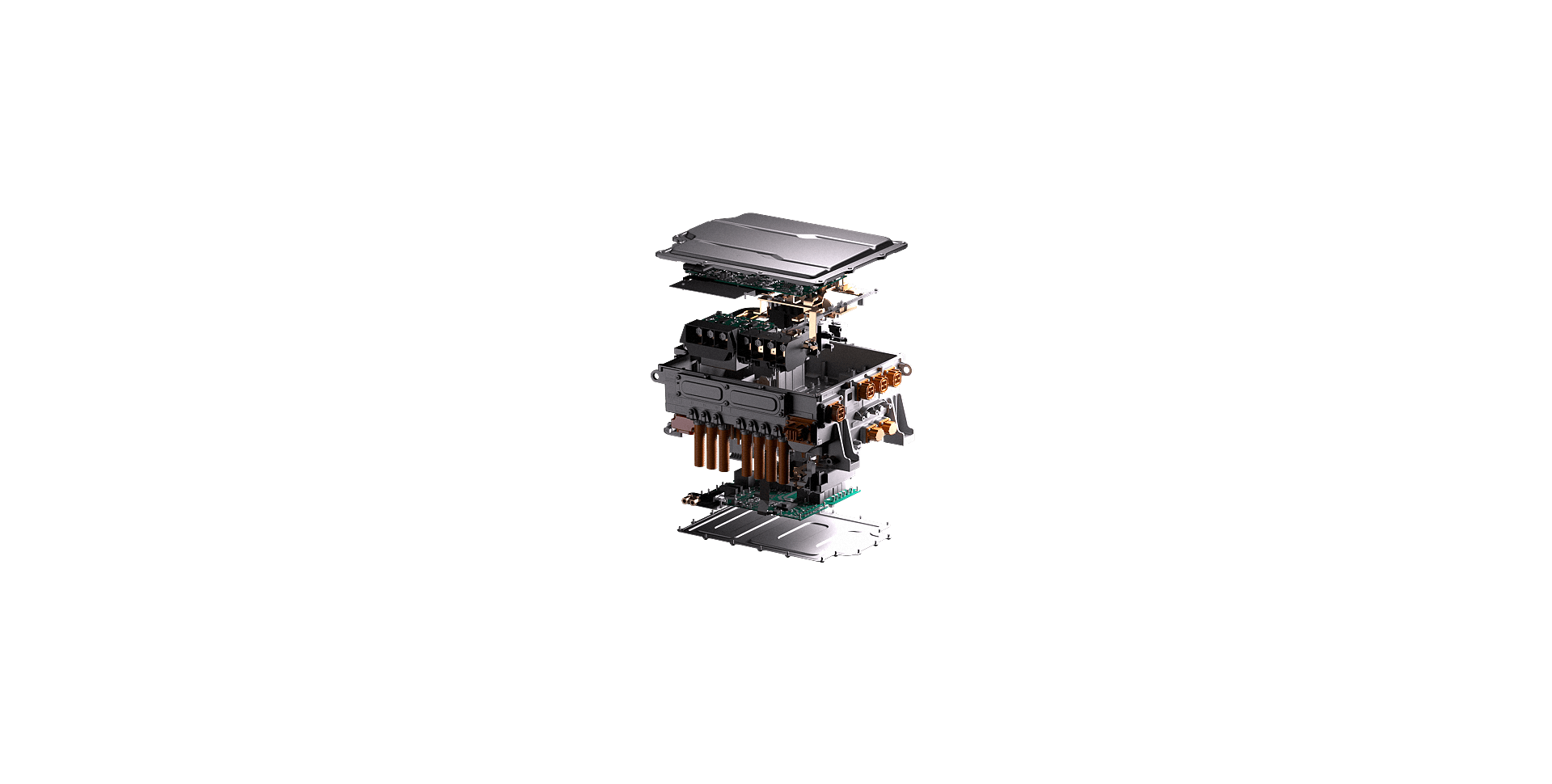

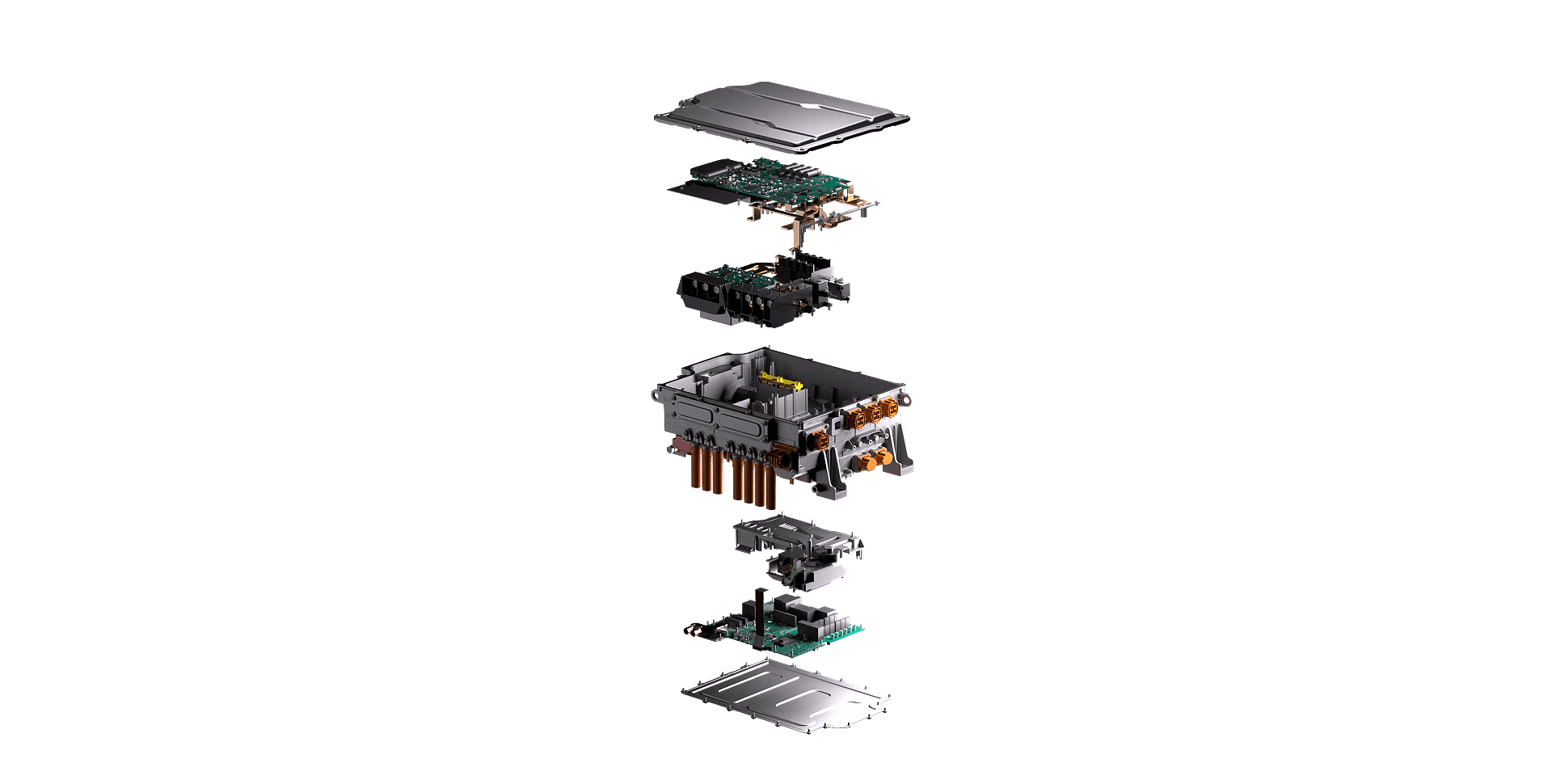

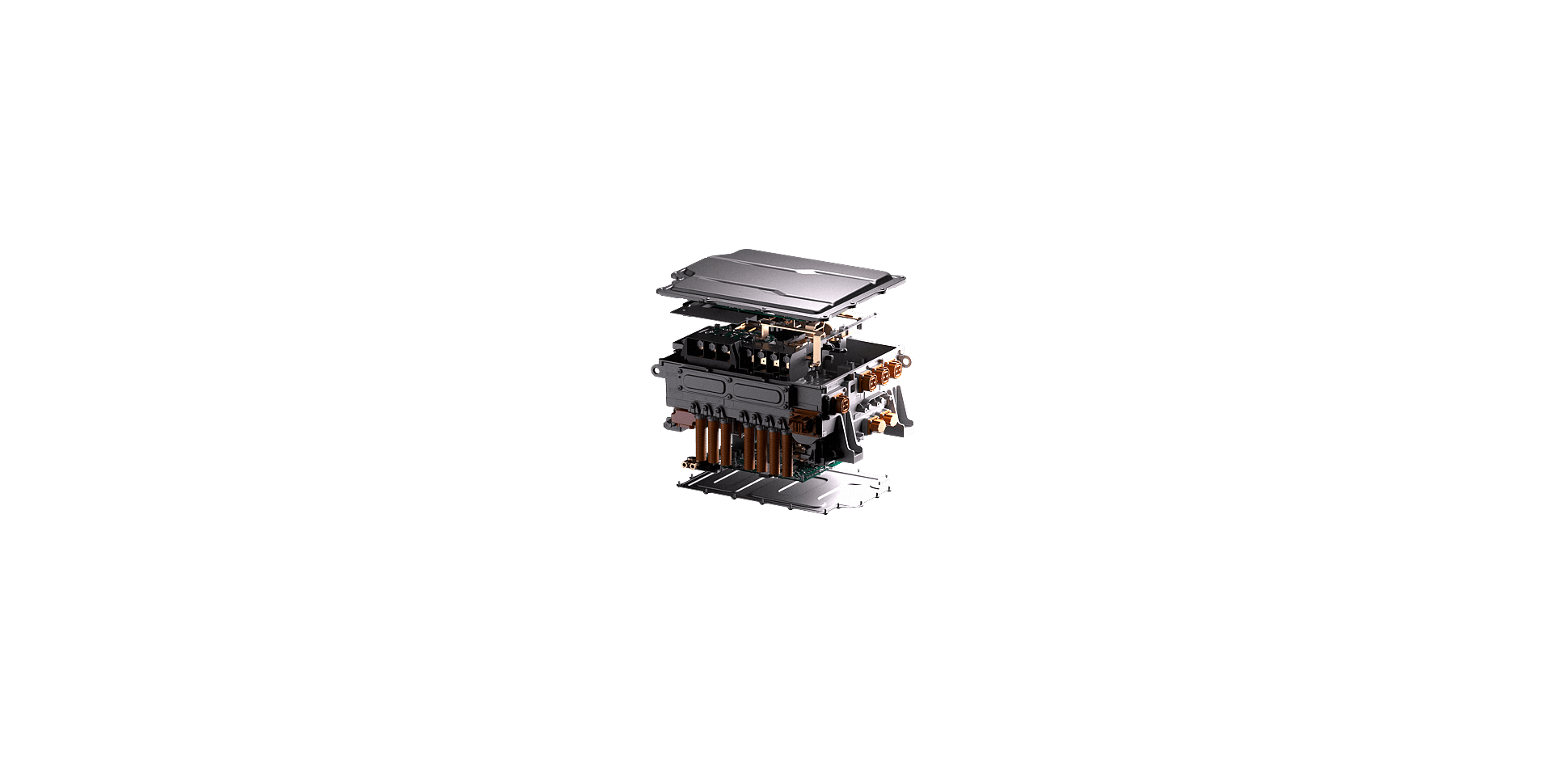

Product Display
Introduction to Core Technologies

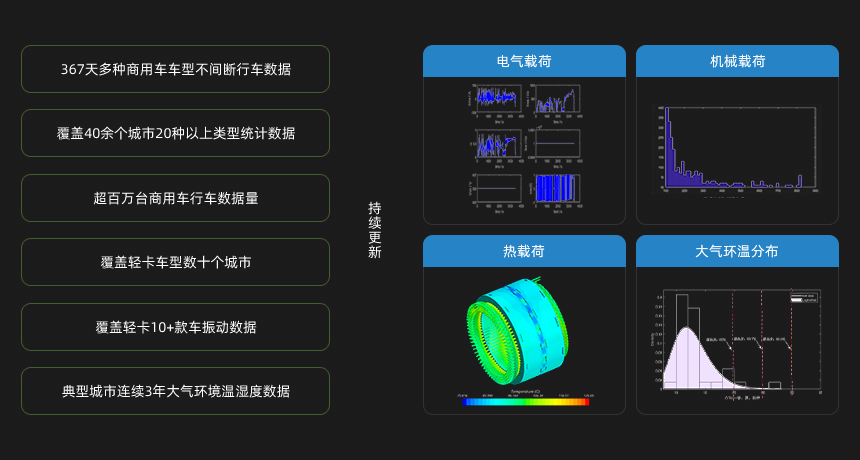

Based on actual user operating condition data and distribution, coupled with decoupling design standards and test verification for complete vehicle and powertrain parameters.

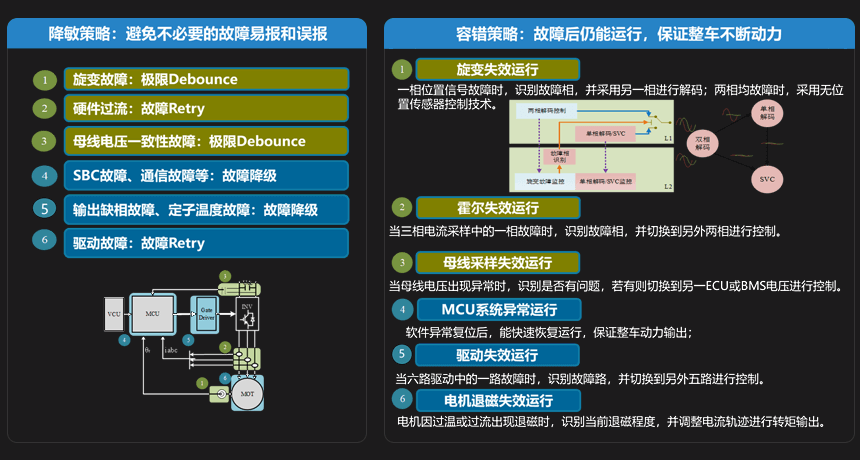

The vehicle can limp along in case of faults, and maintains continuous power in six mainstream fault scenarios.

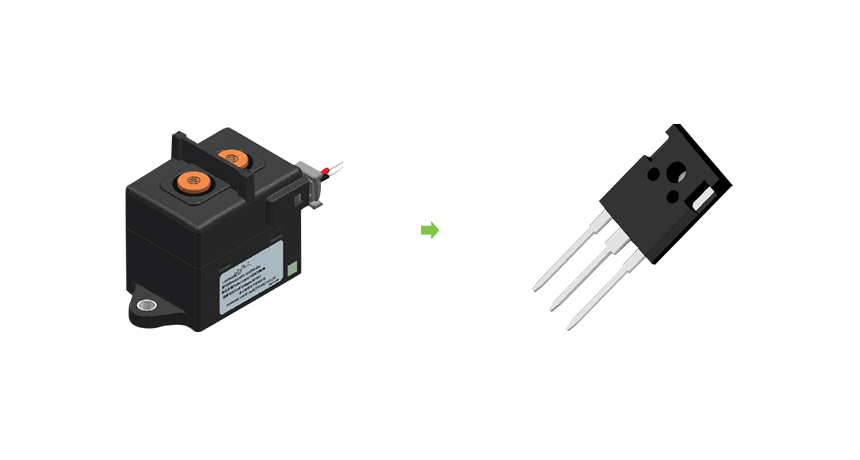

Using semiconductor technology as a power distribution switch for PTC-type resistive loads can solve the problem of contactor load-carrying cut-off lifespan and avoid the need for maintenance fuses and contactors. At the same time, it can also achieve real-time monitoring of load energy consumption, helping the entire vehicle to be more energy-efficient.
Product Parameters
-
Operating voltage range220 VDC to 480 VDC
400 VDC to 750 VDC -
Peak current420 A
-
Peak power120 kW/180 kW
-
EAC&EPS peak current25 A at 60s
-
DC/DC power3 kW/6 kW
-
Vibration class5.8·g
-
Coolant temperature–40°C to +60°C
-
Weight27 kg±2 kg
-
Dimensions529 mm x 447 mm x 224 mm
Continuously reshape the form of power to explore farther places
