Generation 4

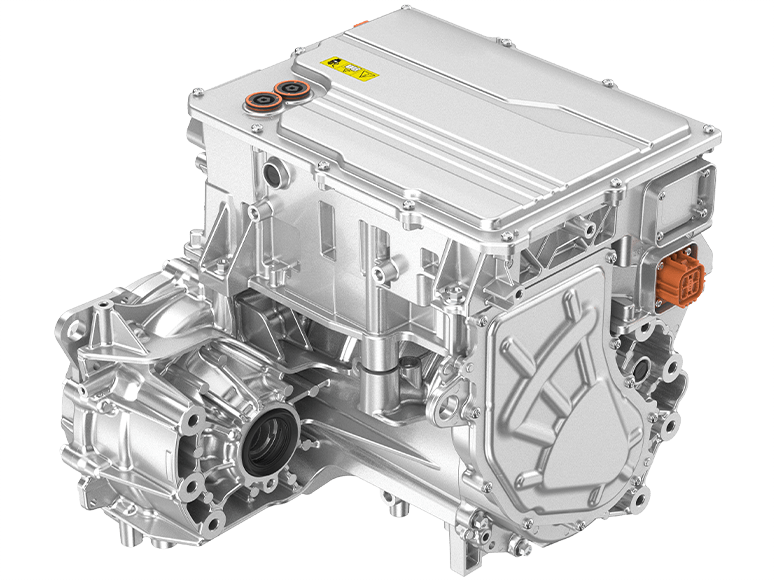

LA4X

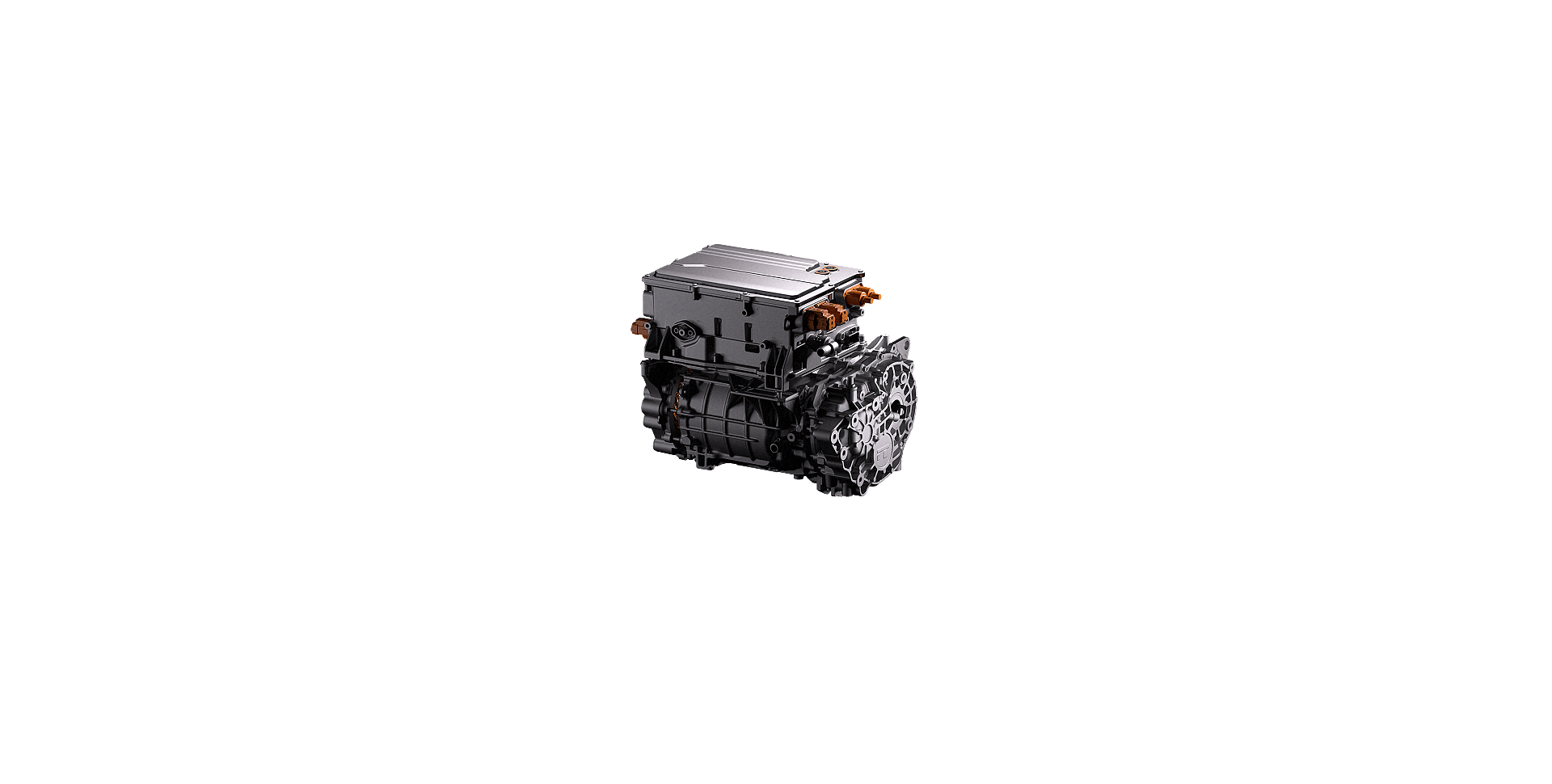

Inovance Automotive Gen 4 X-in-1 eAxle platform, suitable for various front-drive VAN-class models.
Product Features
Global Readiness
![]()
11 kW OBC with EVCC optionally configurable and cyber security included as standard, ready for global markets.
High Efficiency
![]()
The eAxle achieves up to 90% CLTC efficiency.
Long Lifespan
![]()
High-reliability design meets 10-year/400,000 km lifespan requirements.
Domain Control Platform
![]()

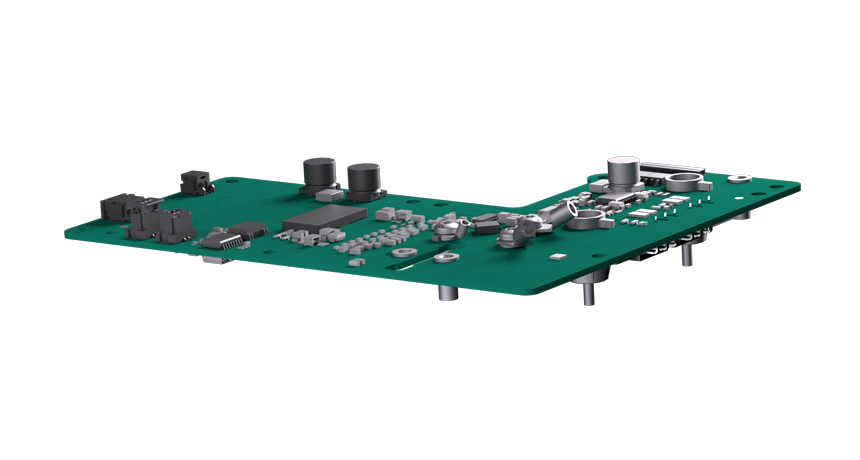

Chip-level integration enables collaborative software development.
High Integration
![]()

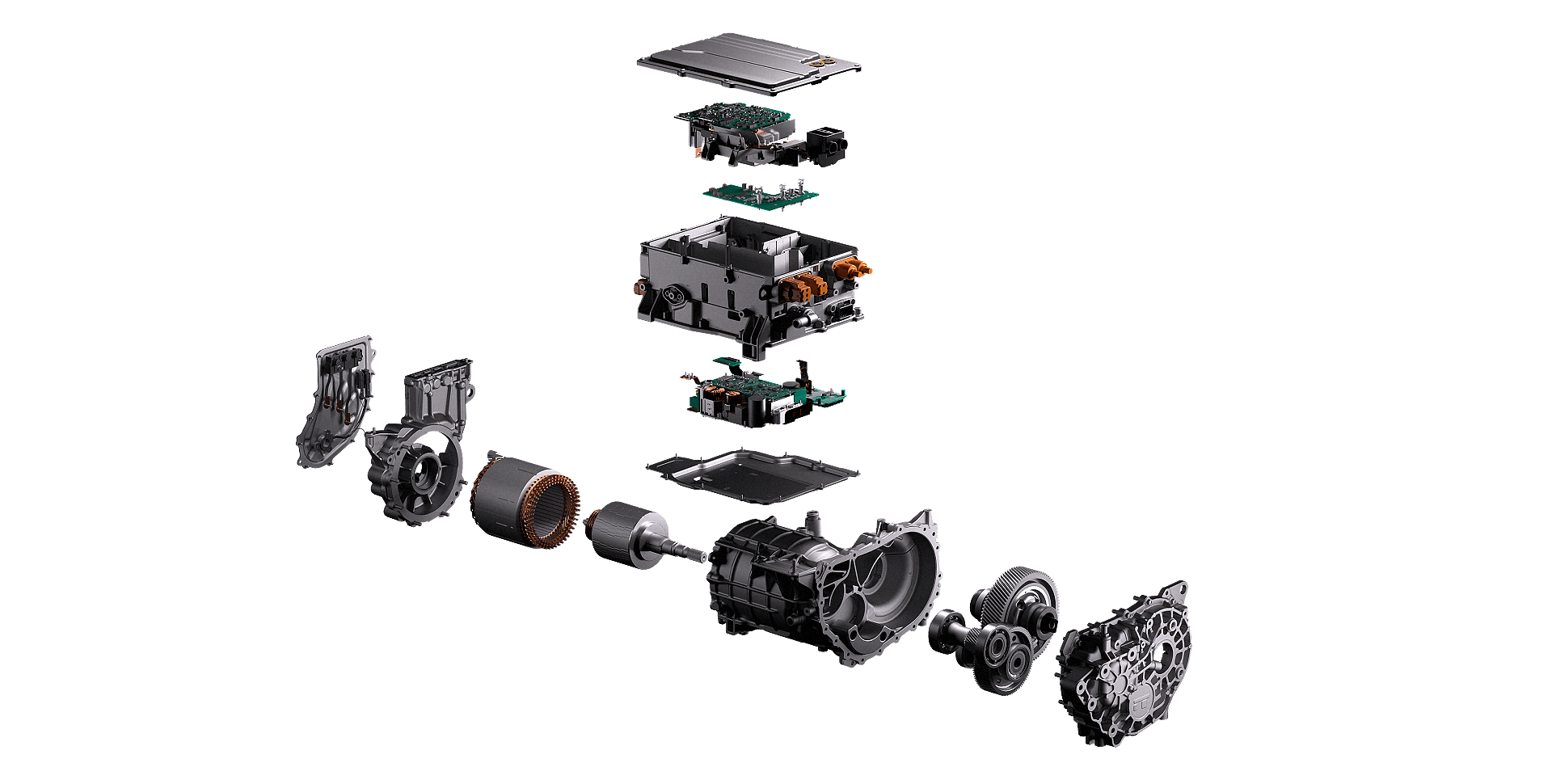

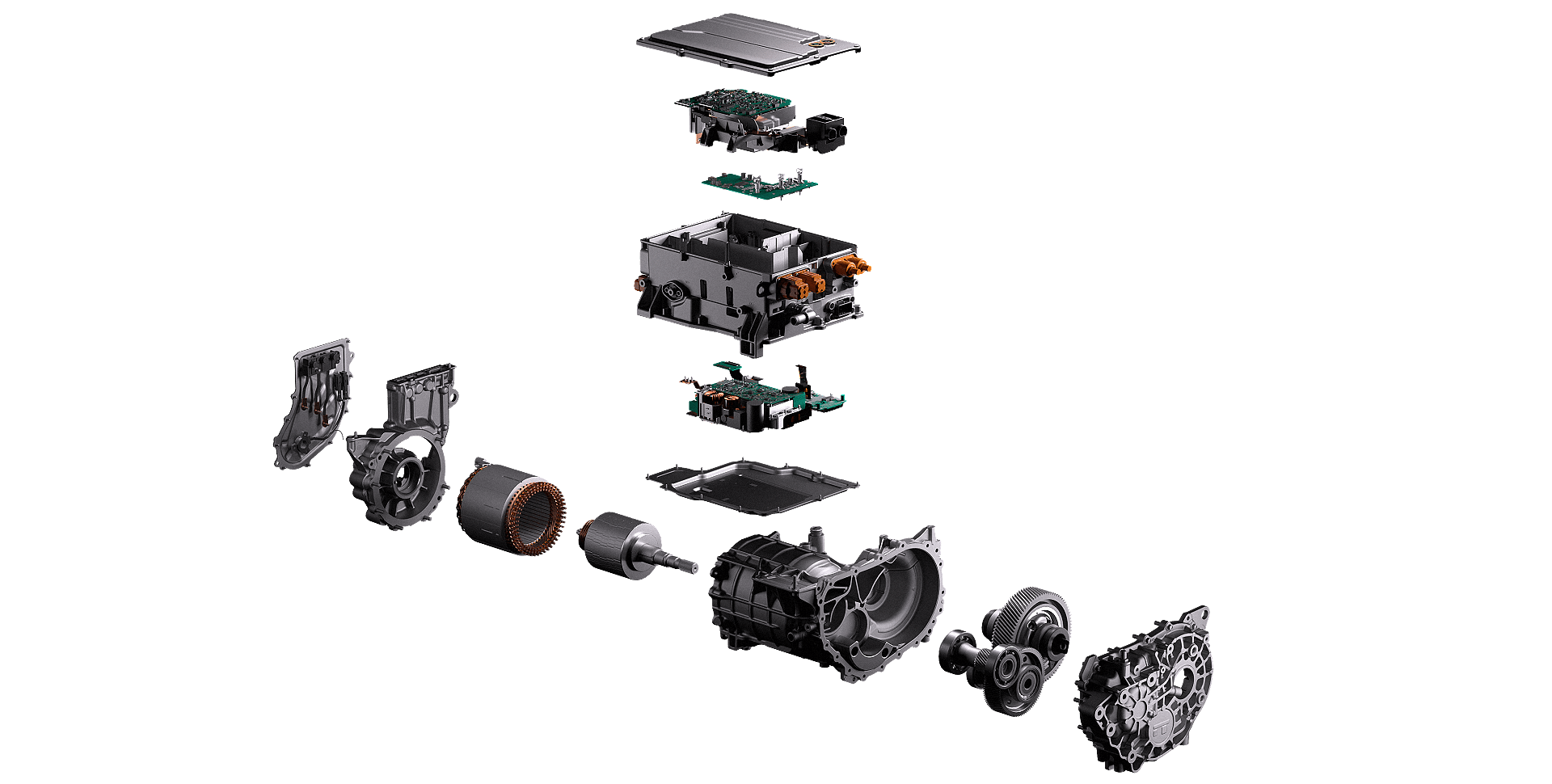

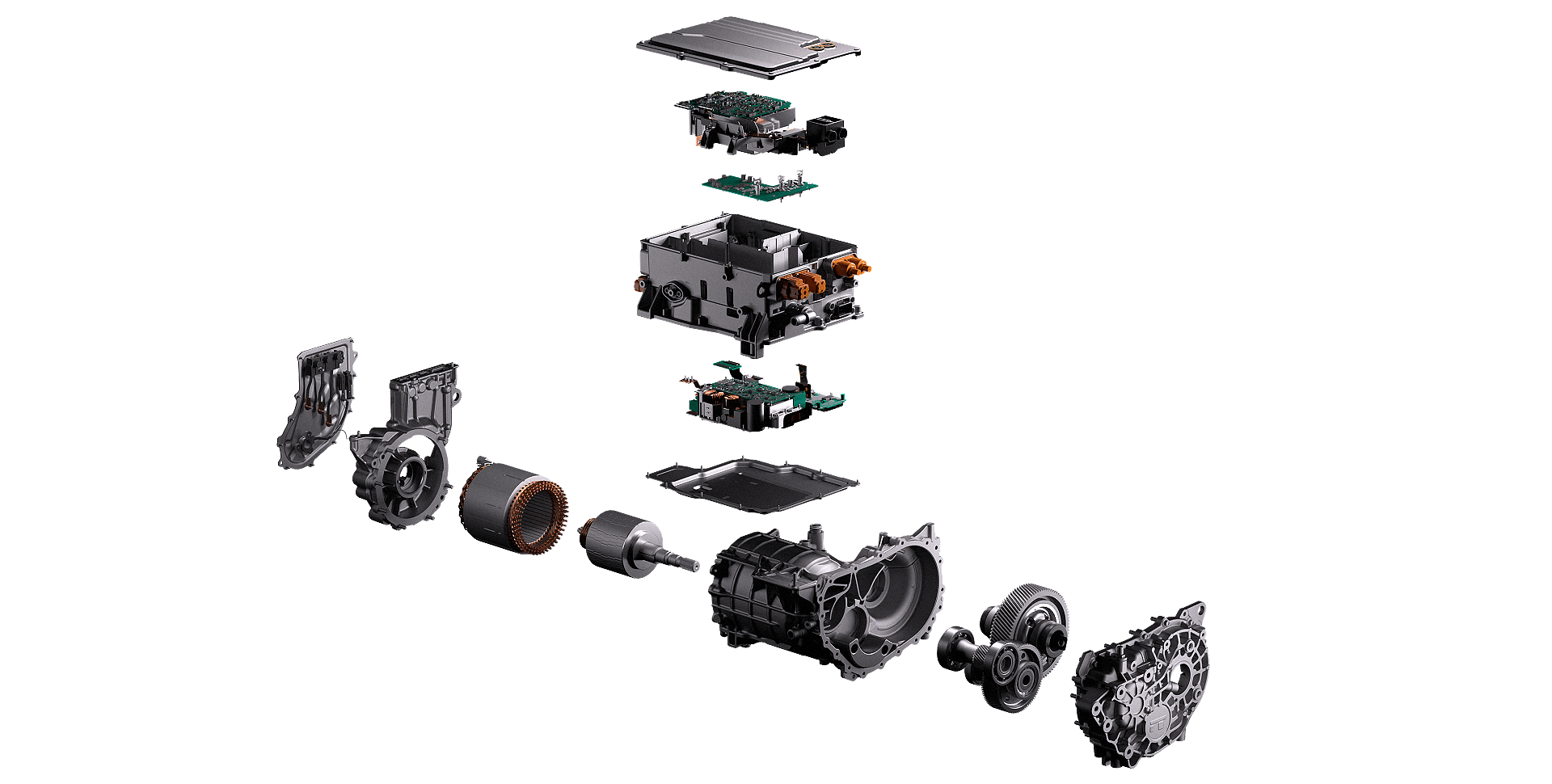

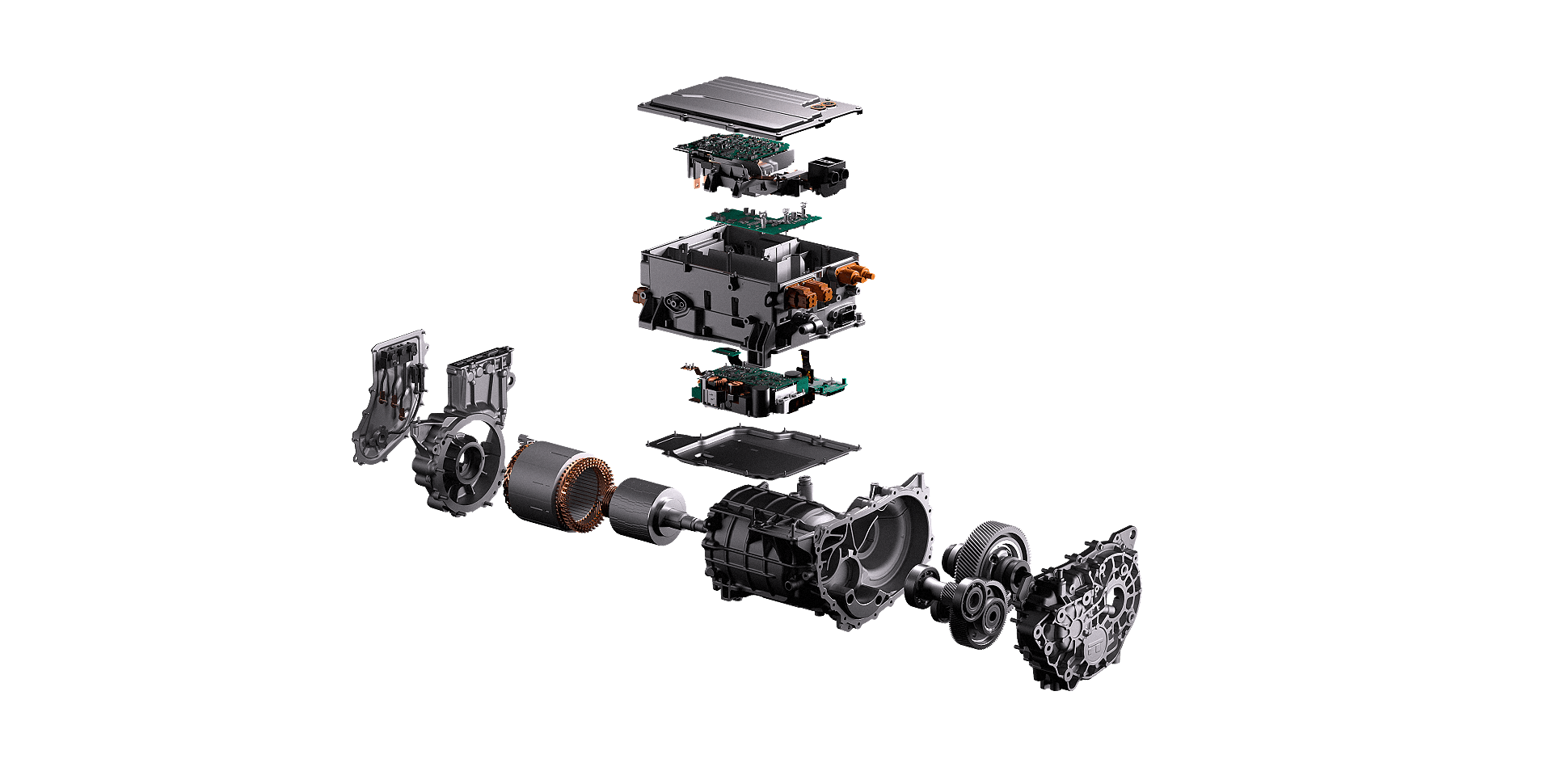

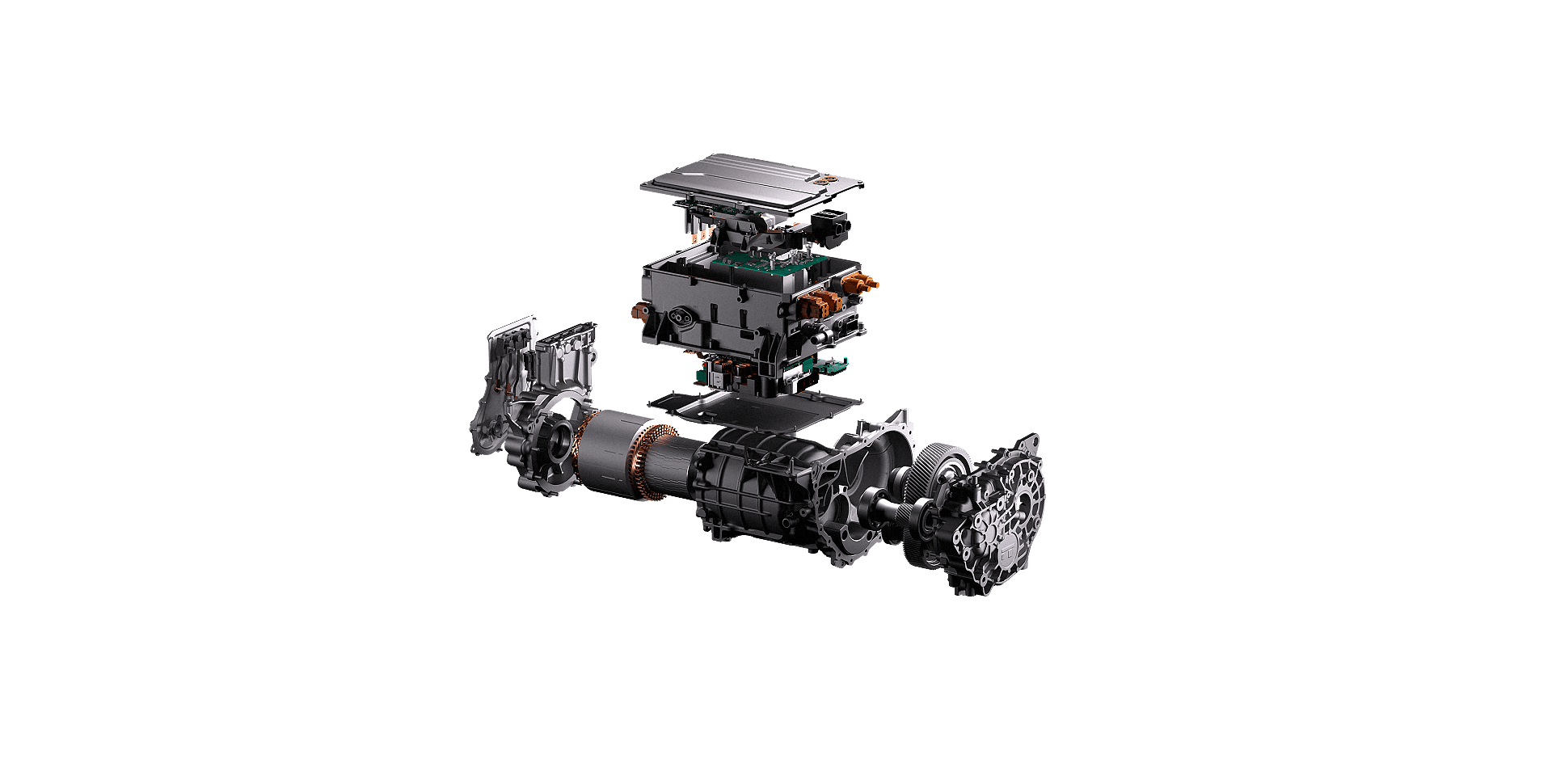

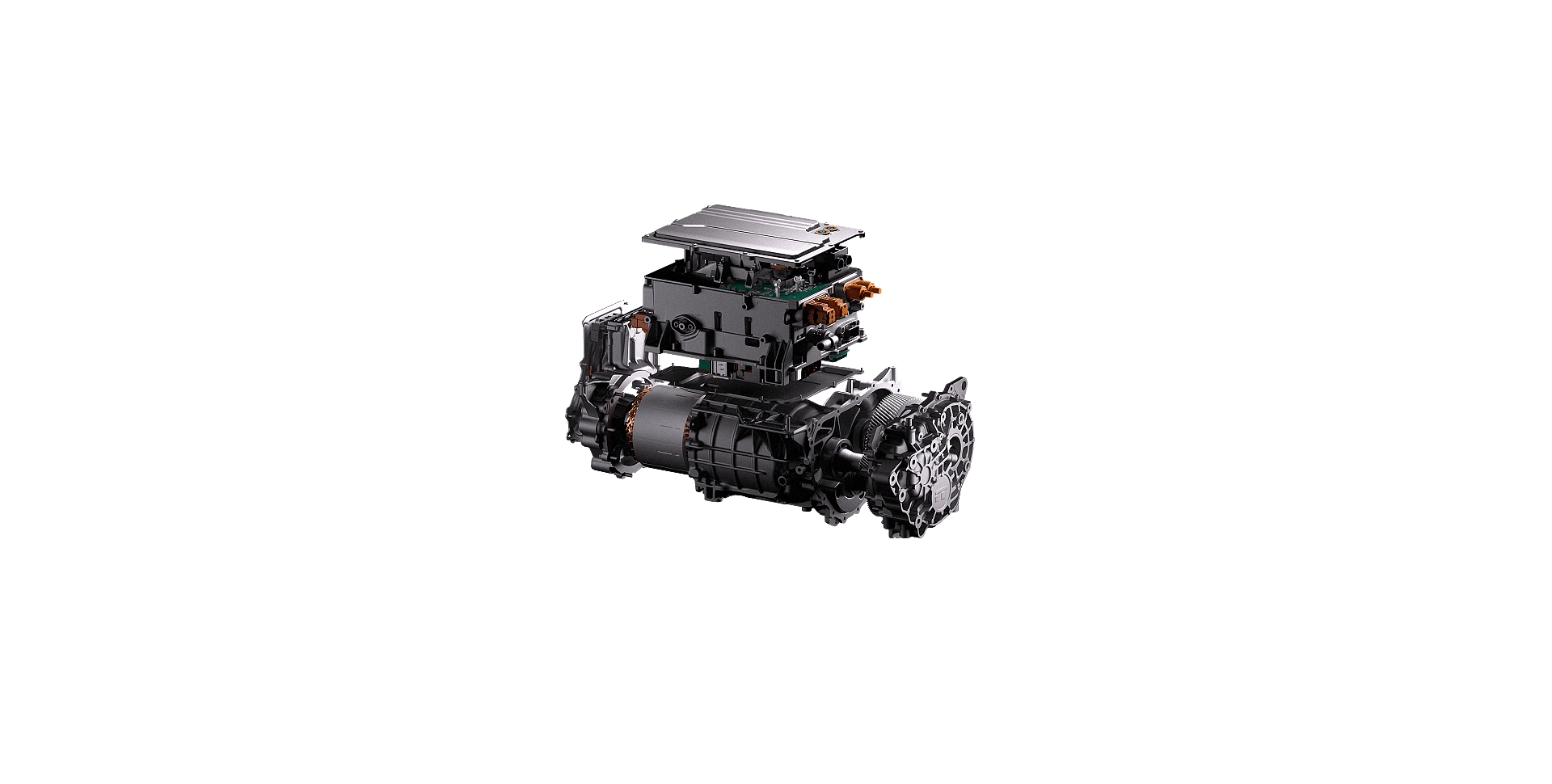

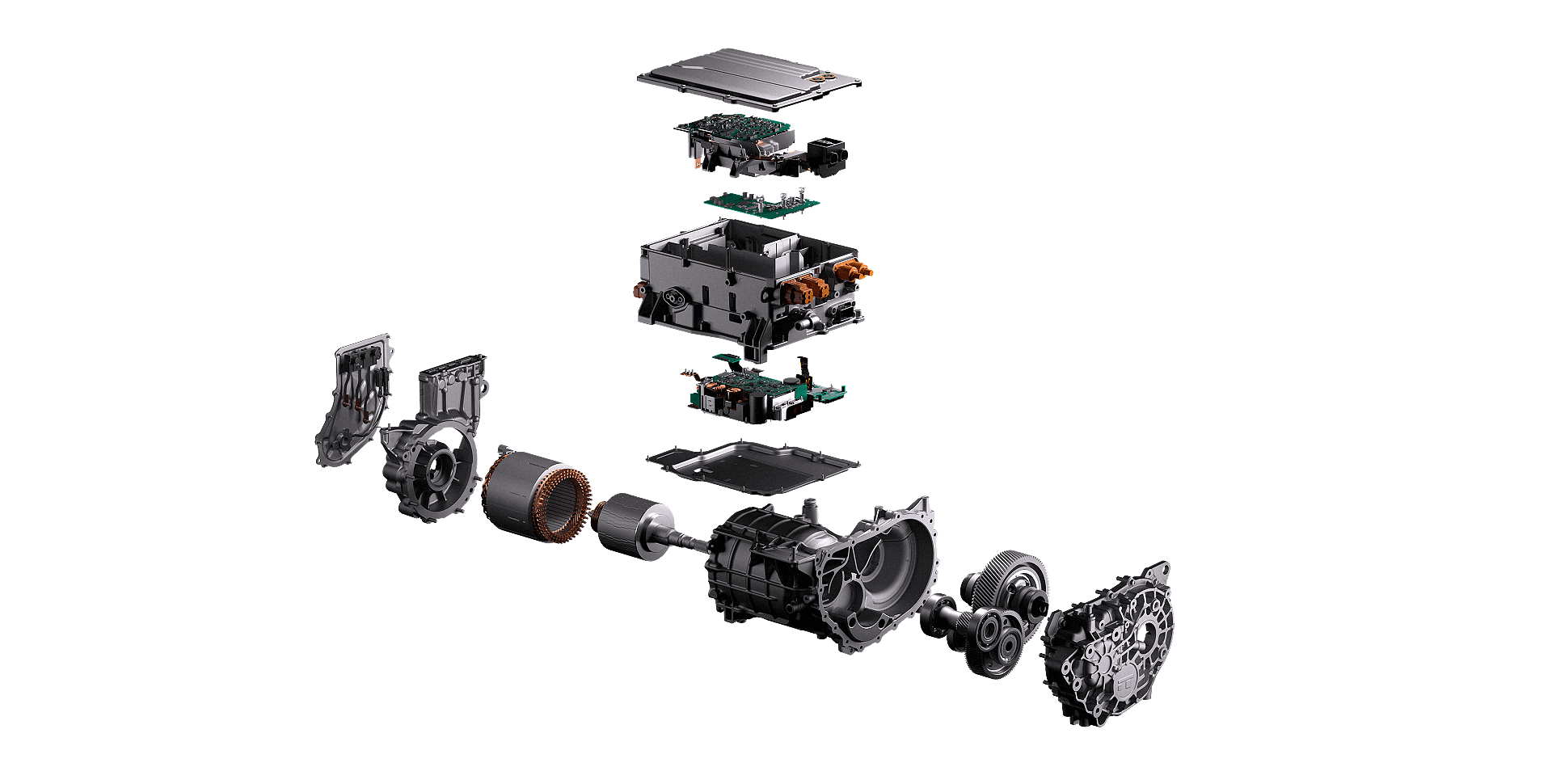

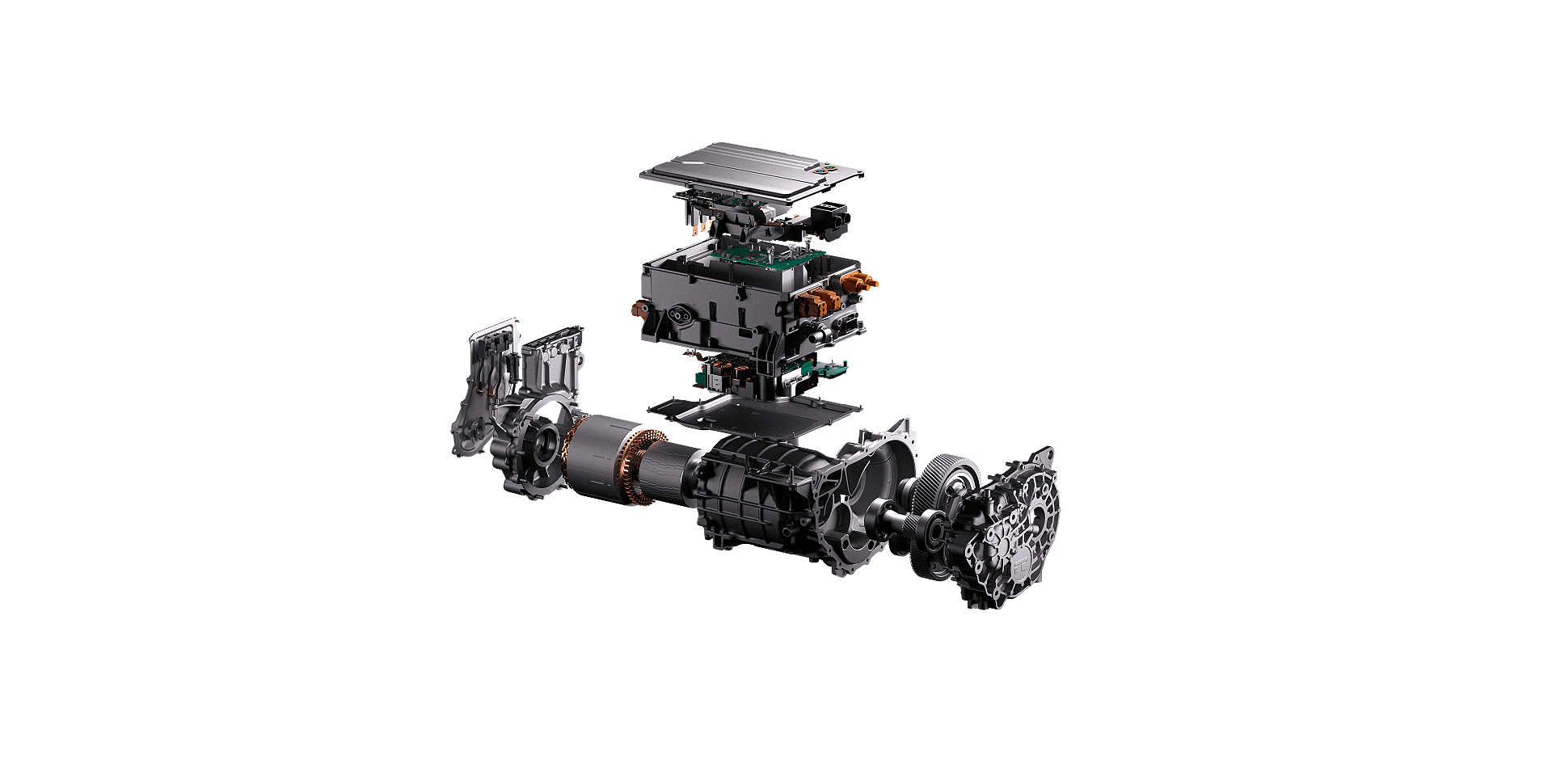

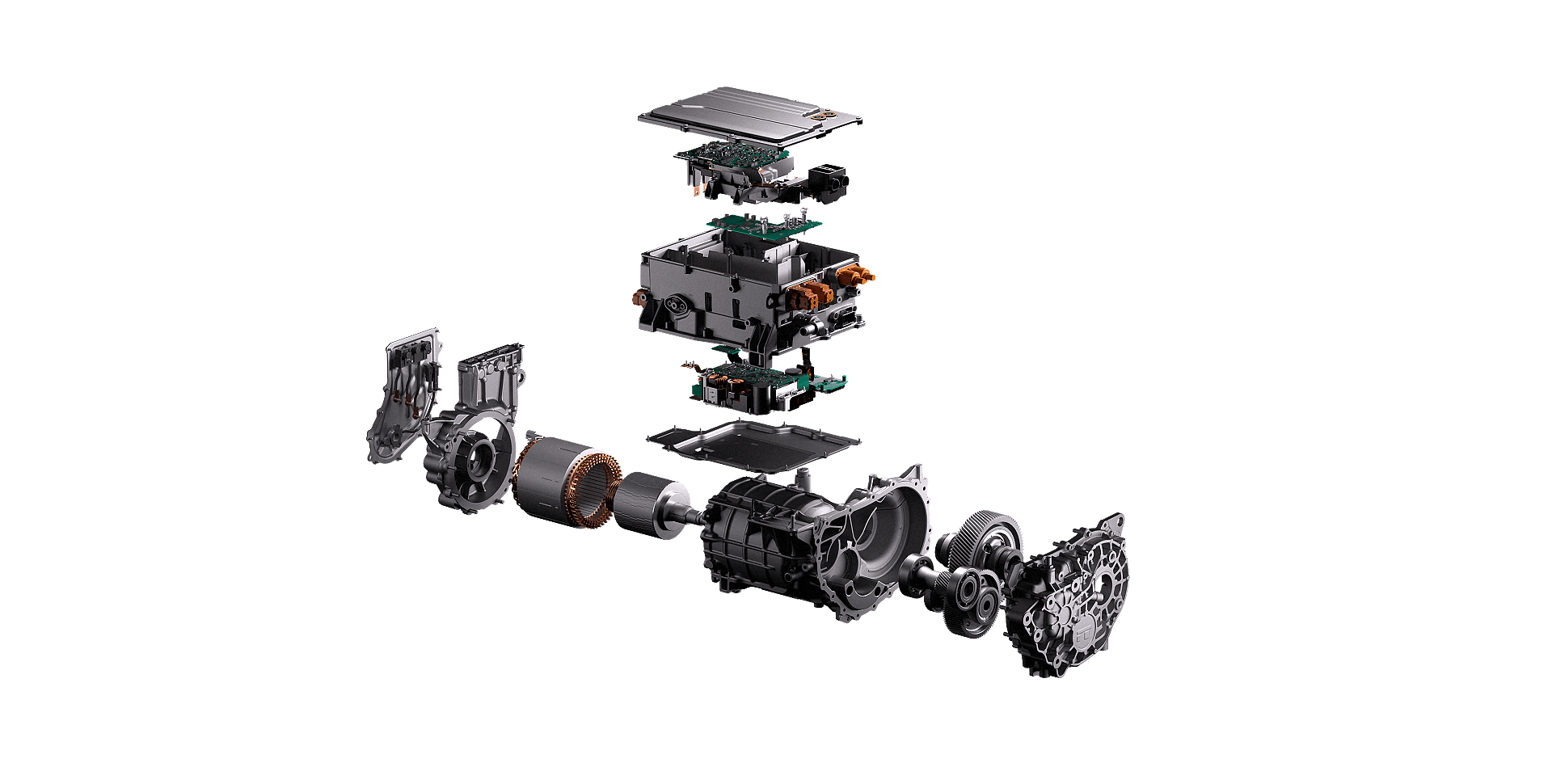

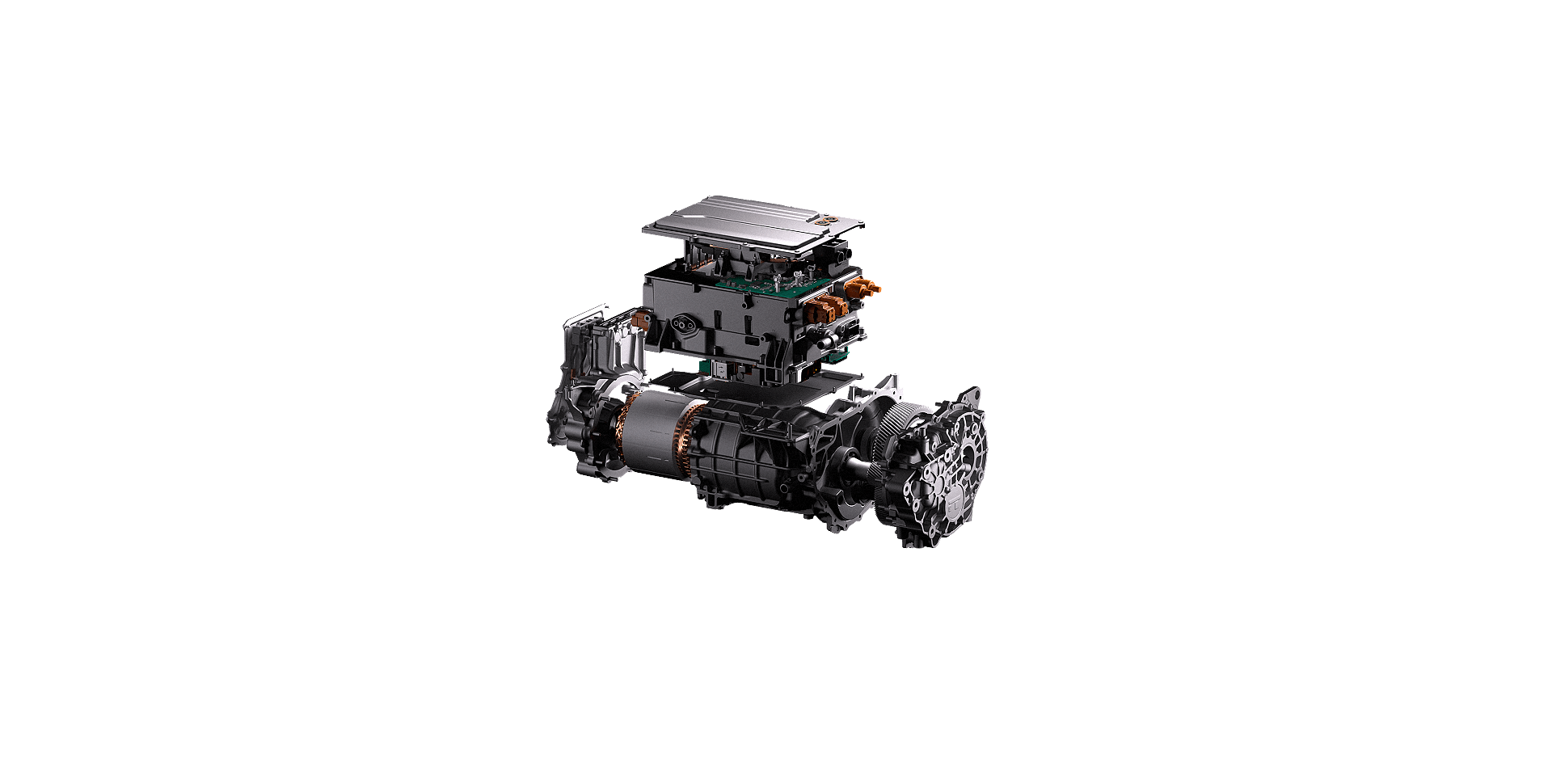

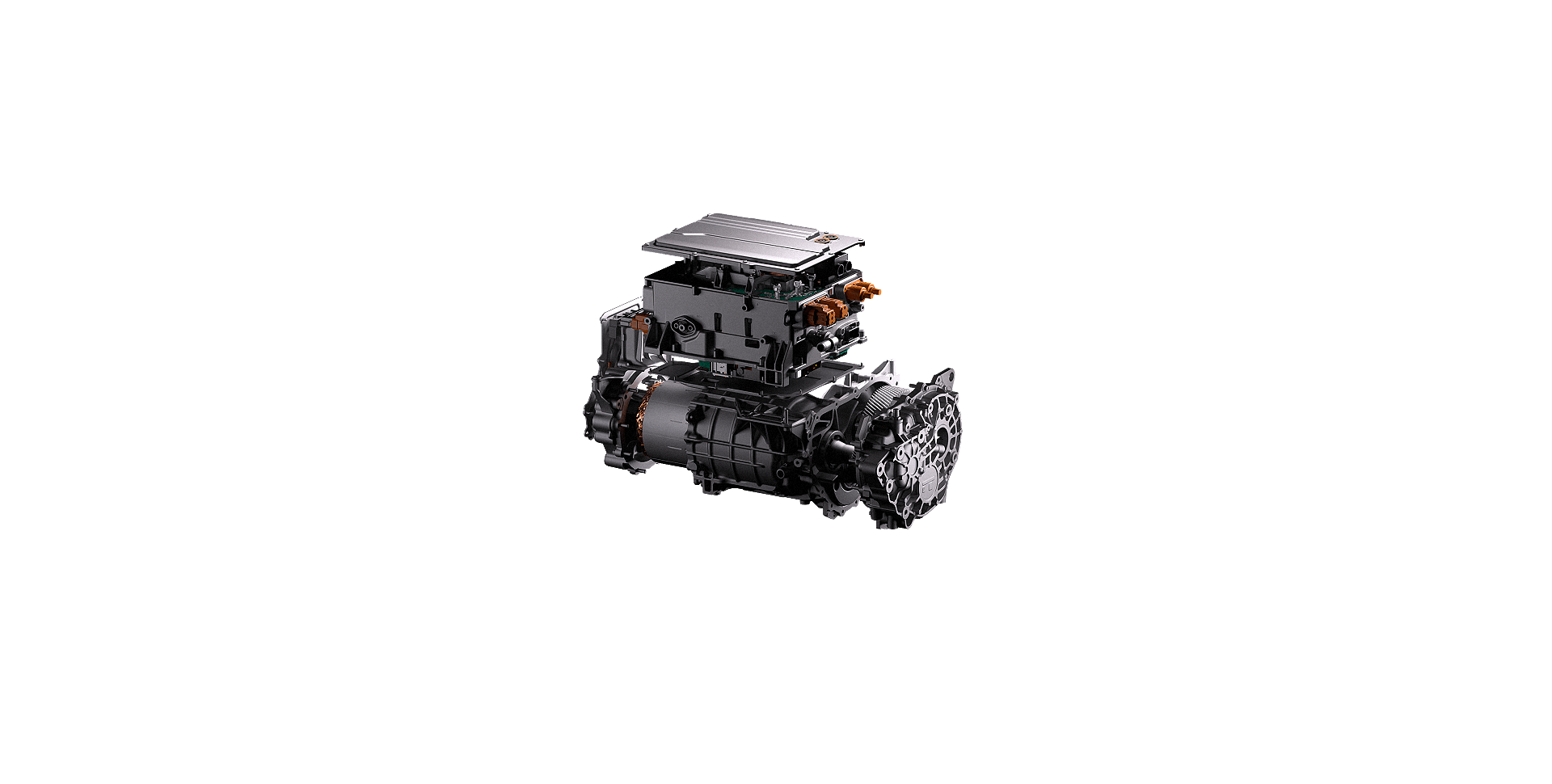

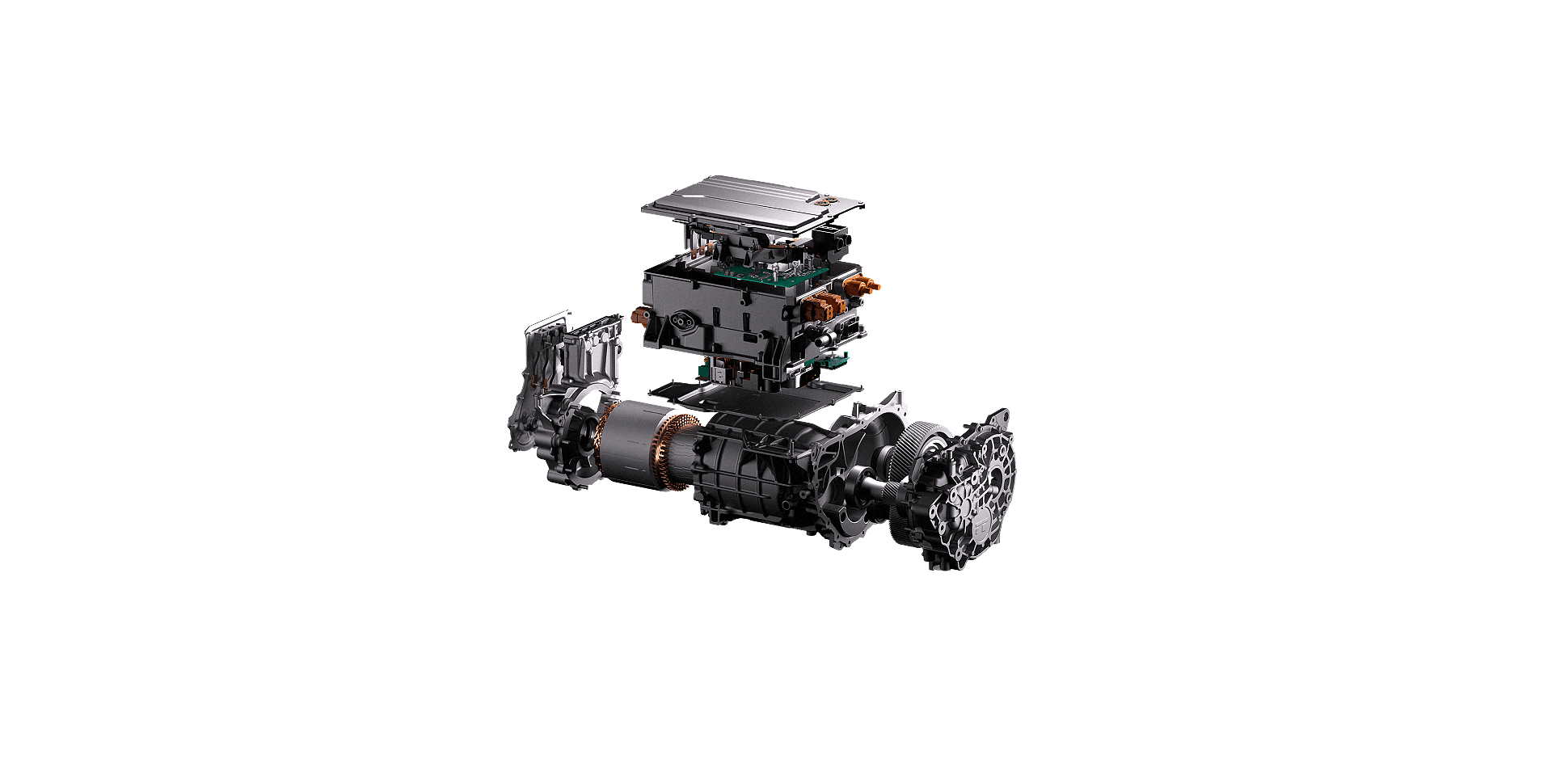

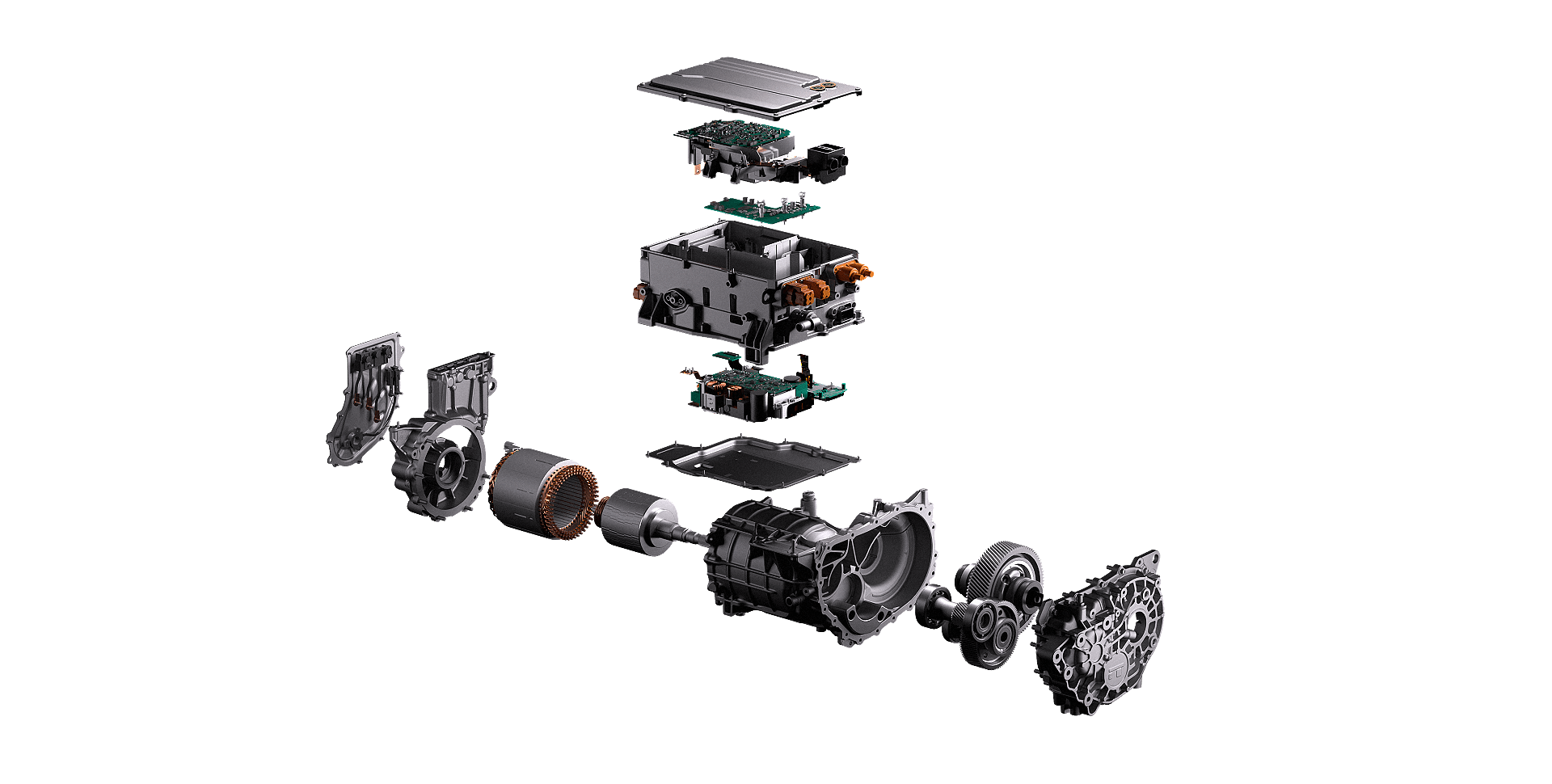

X-in-1 architecture designed for front-drive vehicles, integrating the VCU, EVCC, MCU, DC/DC, OBC, PDU, eMotor, and gearbox into a compact, lightweight unit easy to package.

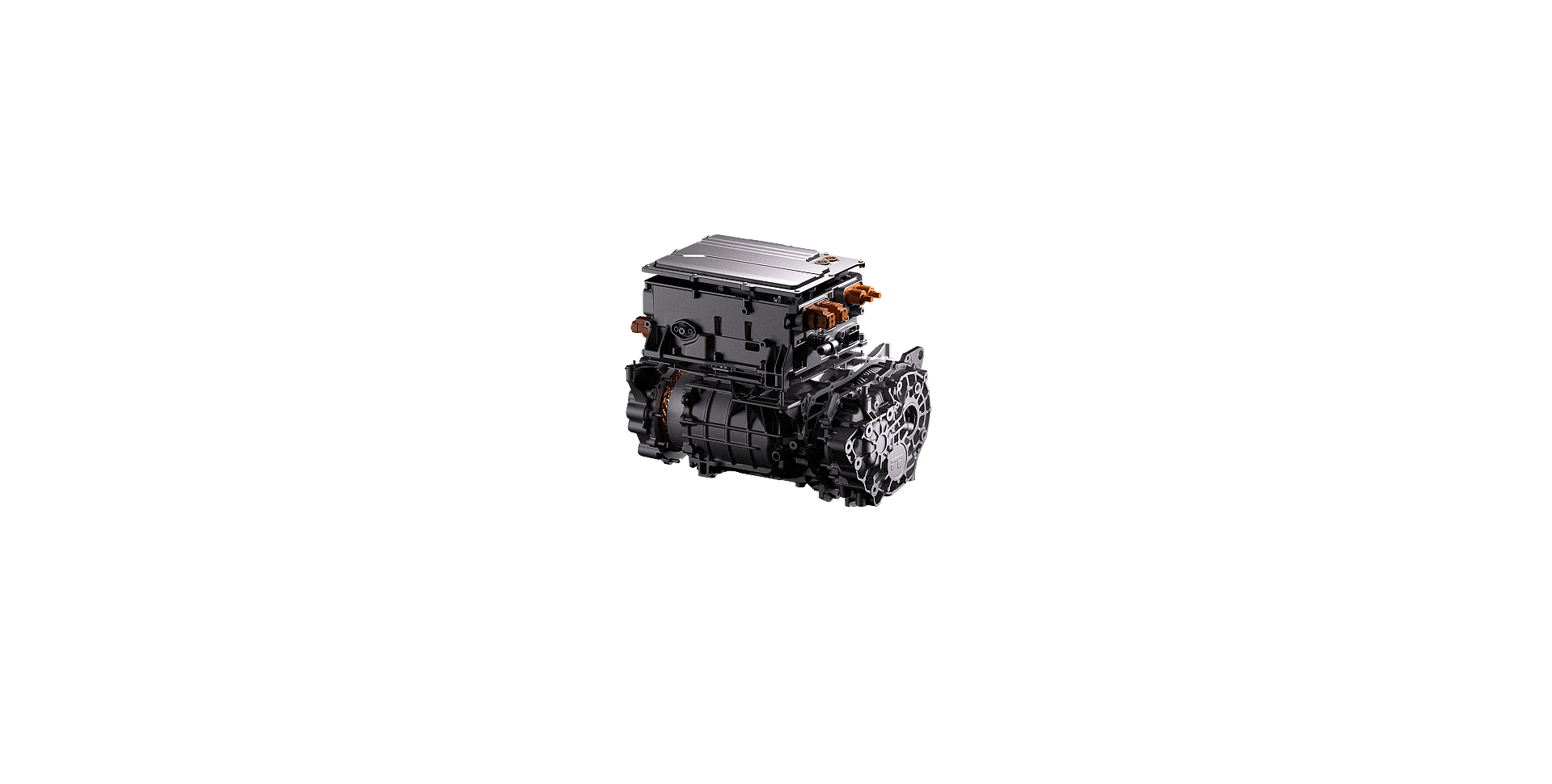

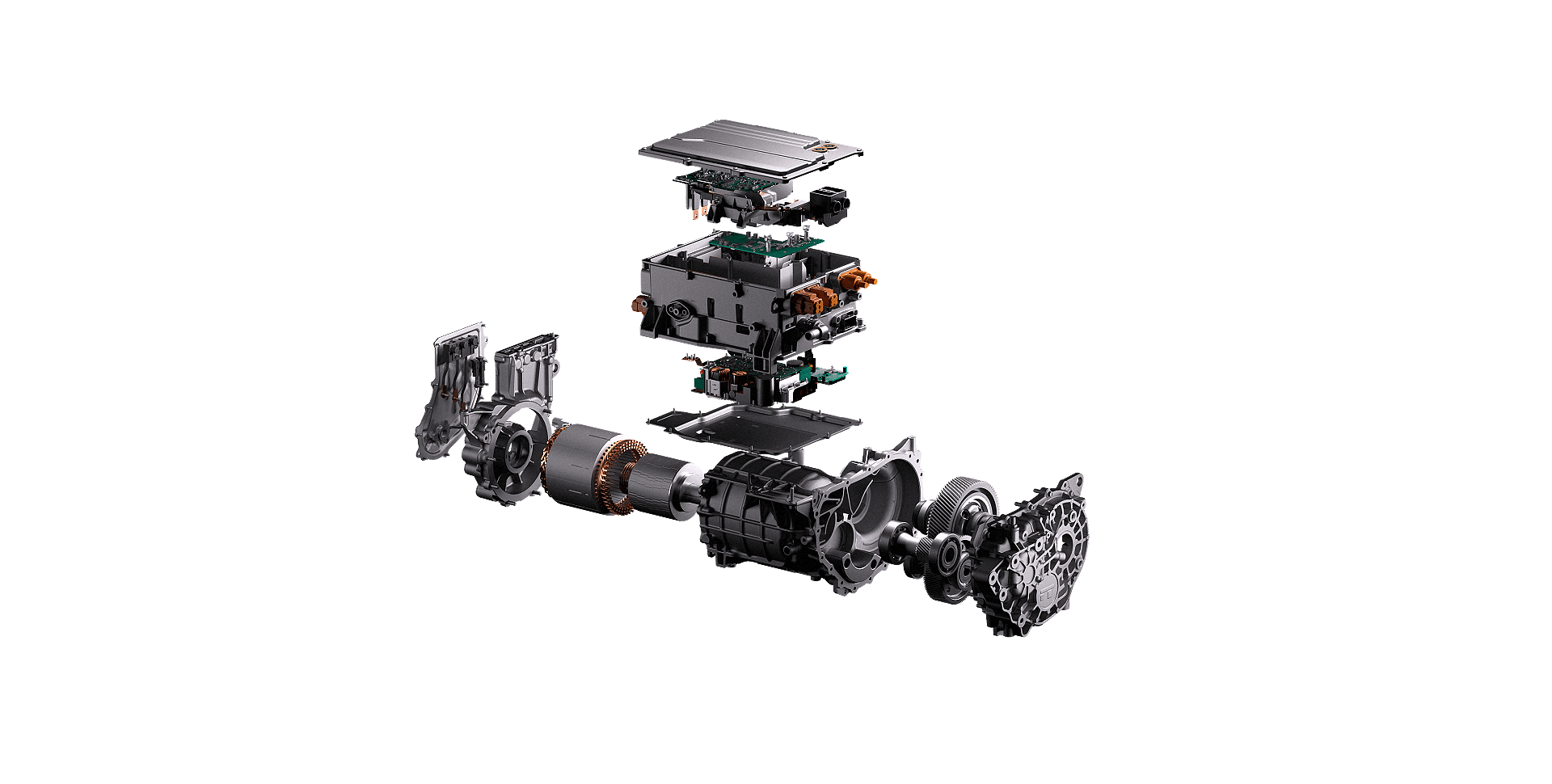

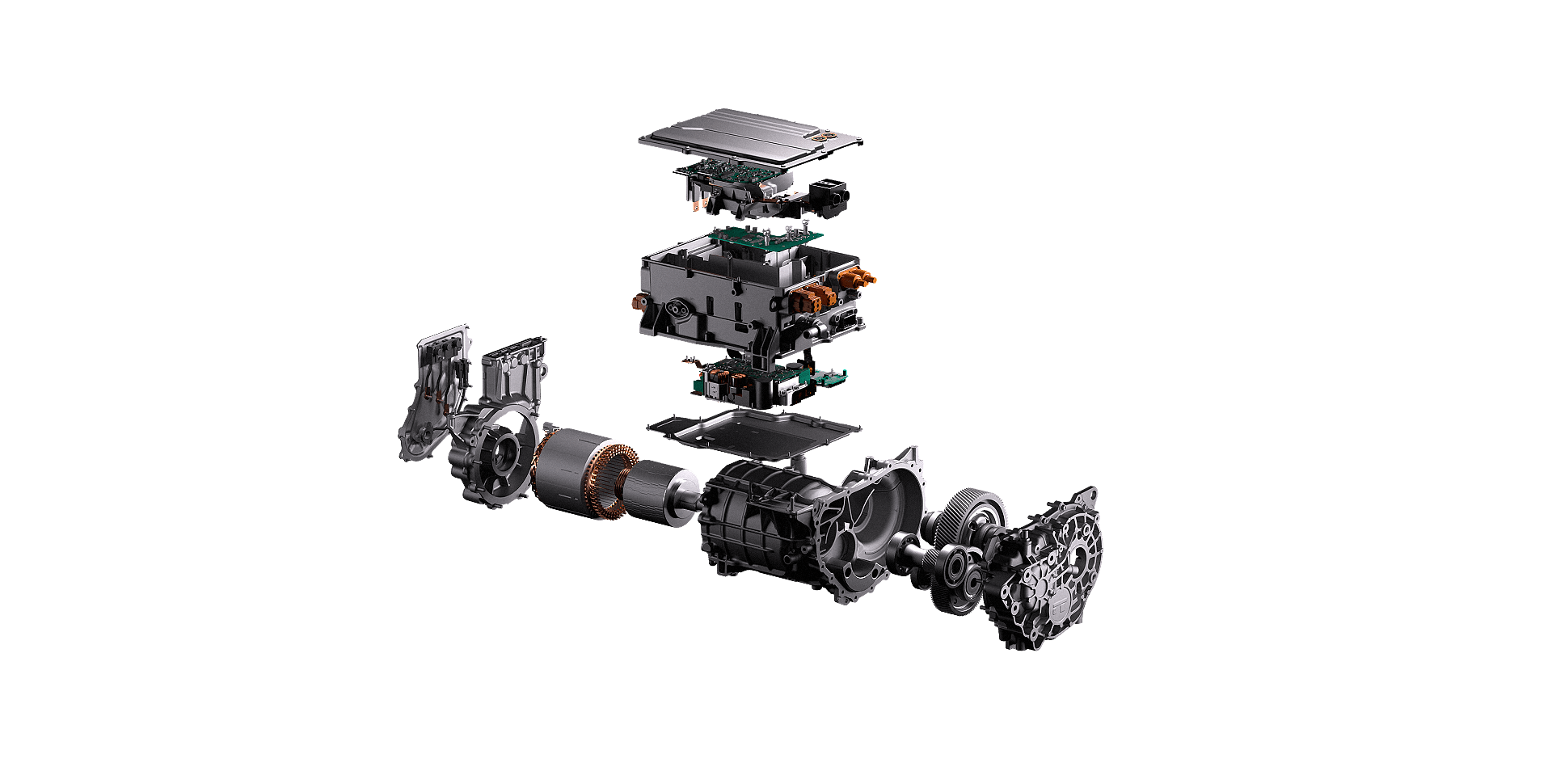

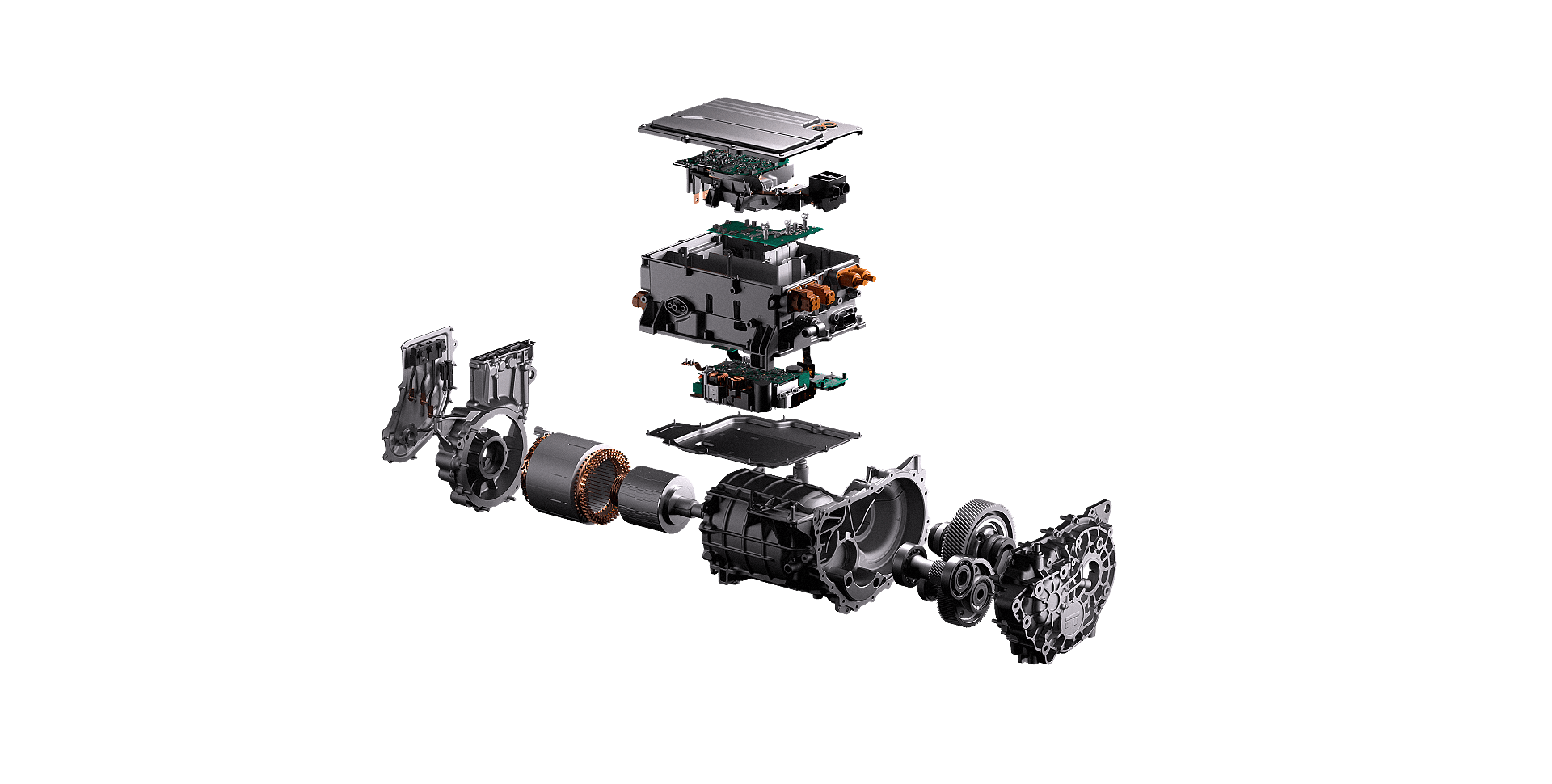

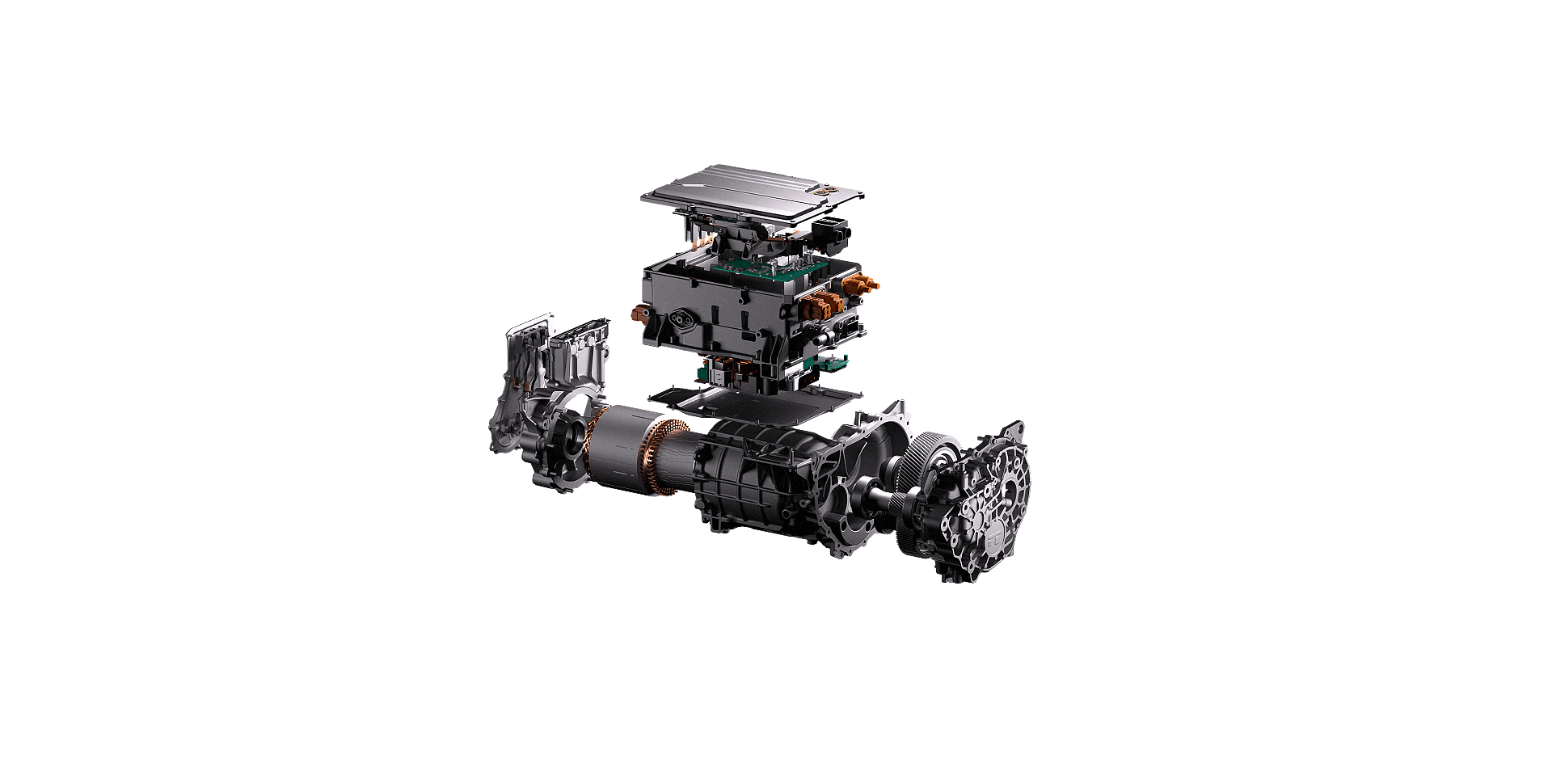

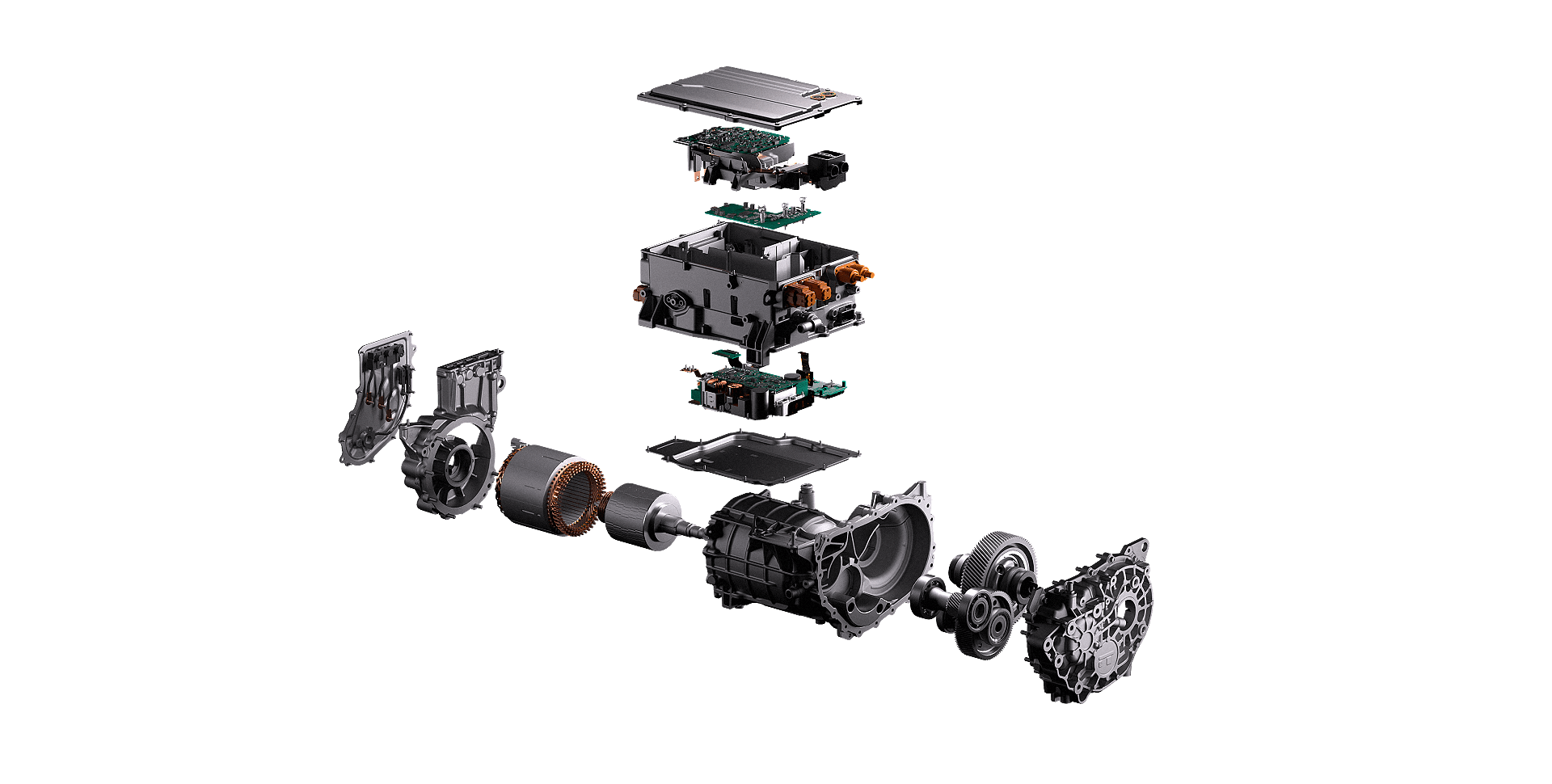

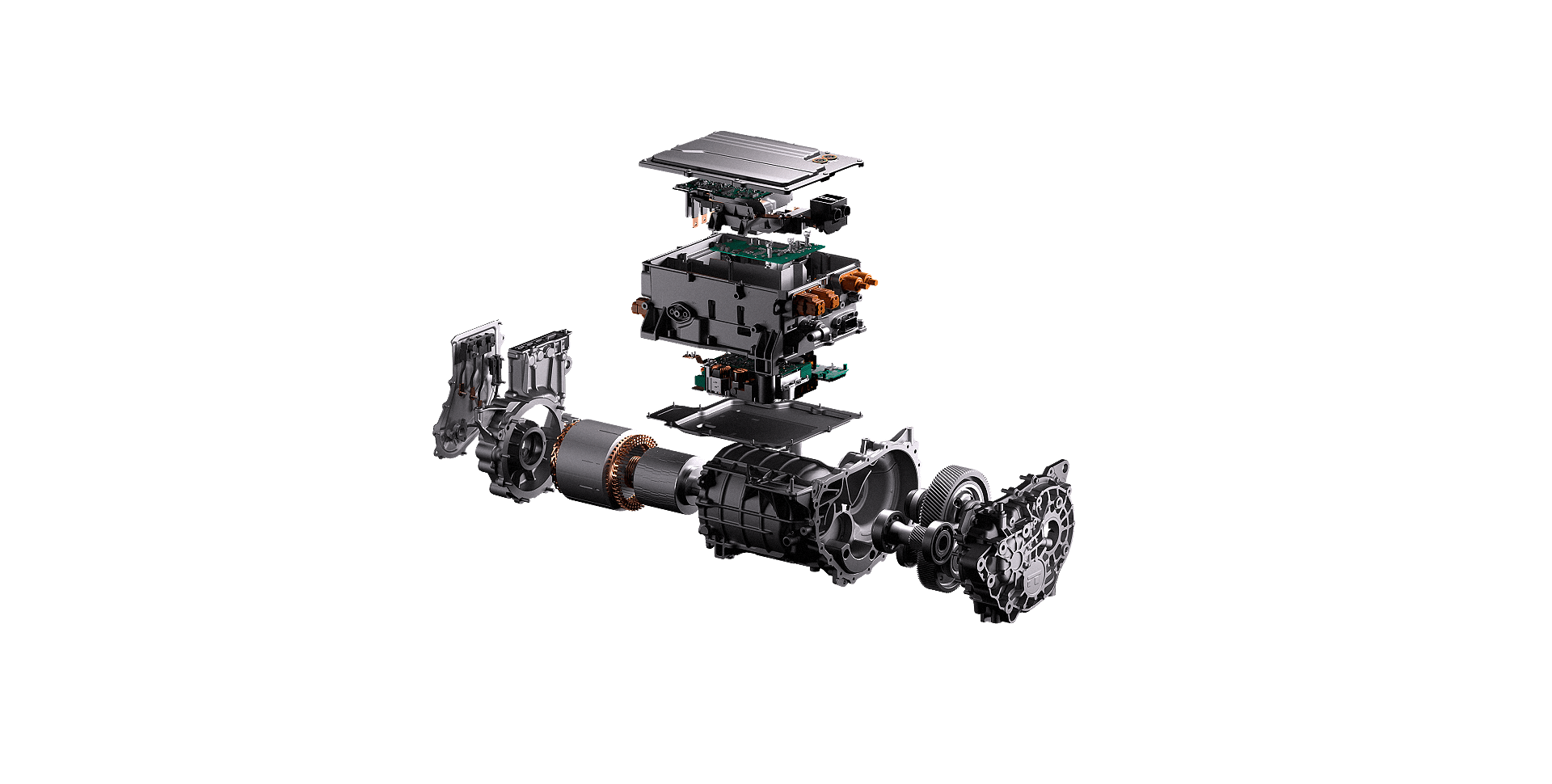

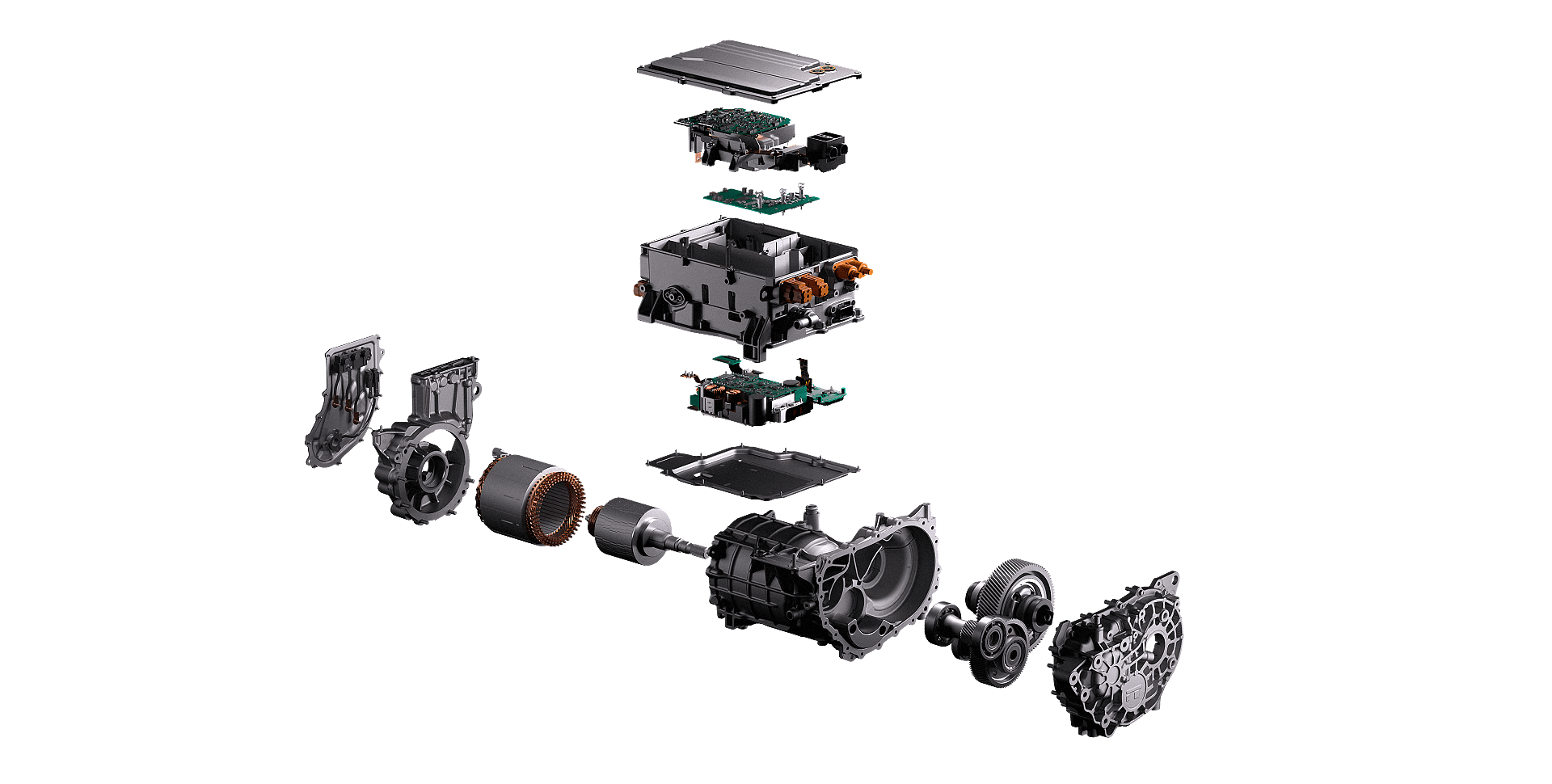

Product Display
Introduction to Core Technologies
Reduced weight and wear, improved efficiency
Integrated housing design, reducing weight
Integrated housing design, reducing weight
Direct PTC drive, intelligent monitoring of power distribution energy flow, and "self-recovering protection" for the power distribution unit
Product Parameters
-
Working condition efficiency0.9
-
ASIL levelNone
-
Wheel-end maximum speed1100 RPM
-
Continuous power45 kW
55 kW -
Wheel-end peak output torque2400 N·m
2750 N·m -
Wheel-end peak output power90 kW
120 kW -
Operating voltage range200 V to 480 V
-
Rated operating voltage350 V
