Generation 5

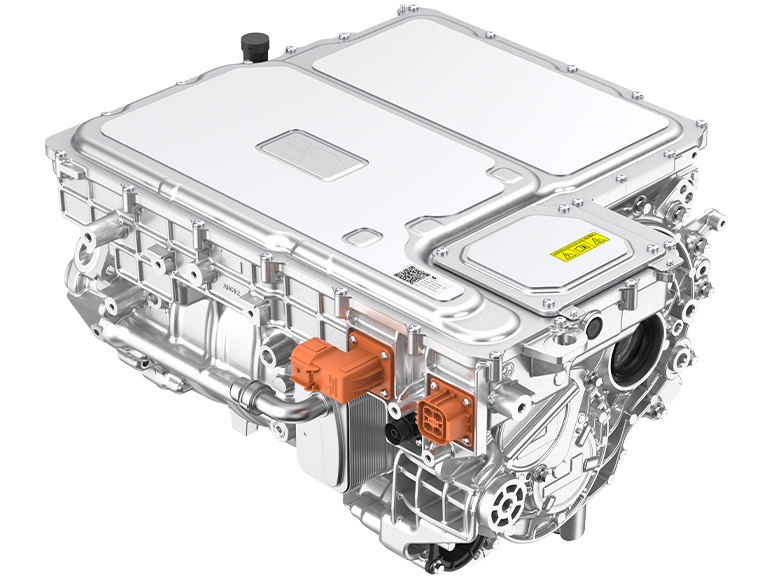

PA5X (High Power)
Inovance Automotive Gen 5 high-power X-in-1 eAxle, suitable for B+ class and above sedans and SUVs
Product Features
New Technologies
Ultra-low spatter welding, 0.2 mm self-bonding technology, and low-viscosity lubricating oil.
Integrated Design
Chip-level integration of the inverter and combined charging system; mechanical and electrical components share a common housing.
Broad Compatibility
400 V/800 V compatible, PSM/ASM compatible, Si/SiC compatible, and OBC 6.6 kW/11 kW compatible.
High Efficiency
WLTC cycle efficiency ≥ 93% @ SiC.
Product Parameters
-
Operating voltage336 V to 750 V, 625 Vnom
-
Peak output power> 265 kW @ 510 RPM to 1100 RPM @ 620 V
-
Peak output torque> 5000 N·m @ 0 to 500 RPM
-
Continuous output power> 90 kW @ 450 RPM to 1350 RPM @ 620 V
-
Continuous output torque> 2100 N·m @ 0 to 340 RPM
-
Working condition efficiency≥ 92.5%
-
Maximum speed1450 RPM
-
Inverter EMCCLASS 3
-
Functional safetyASIL-C
-
IP ratingIP67/IP6K9K
-
OBCCharging: 6.6 kW
Vehicle-to-Load (V2L): 2.2 kVA
Total discharge power: 6.0 kVA -
DC/DC3.5 kW
-
PDU2 channels
-
Boost function900 V boost: simulation and A-sample validation completed
-
Weight96.5 kg (including oil and added weight from efficiency improvement measures; excluding three-phase disconnect)
